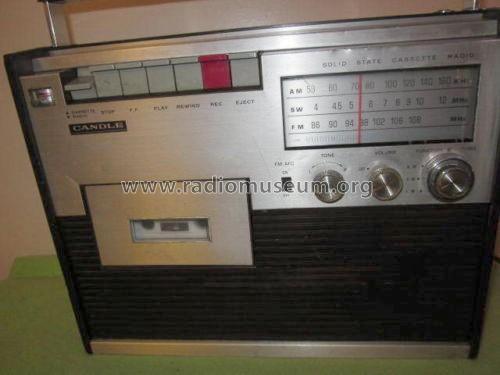

Candle - Radio Cassette Tape Recorder TR-1664 (Japan 712)

Candle - Radio Cassette Tape Recorder TR-1664 ; Tokyo Transistor (ID = 1804059) Radio Candle - Radio Cassette Tape Recorder TR-1664 ; Tokyo Transistor (ID = 1804061) Radio
Candle - Radio Cassette Tape Recorder TR-1664 ; Tokyo Transistor (ID = 1804062) Radio Candle - Radio Cassette Tape Recorder TR-1664 ; Tokyo Transistor (ID = 1804063) Radio
Candle - Radio Cassette Tape Recorder TR-1664 ; Tokyo Transistor (ID = 1804064) Radio Candle - Radio Cassette Tape Recorder TR-1664 ; Tokyo Transistor (ID = 1804065) Radio
Candle - Radio Cassette Tape Recorder TR-1664 ; Tokyo Transistor (ID = 1804066) Radio Candle - Radio Cassette Tape Recorder TR-1664 ; Tokyo Transistor (ID = 1860013) Radio
Candle - Radio Cassette Tape Recorder TR-1664 ; Tokyo Transistor (ID = 1860014) Radio Candle - Radio Cassette Tape Recorder TR-1664 ; Tokyo Transistor (ID = 1860015) Radio
Use red slider bar for more.
Candle - Radio Cassette Tape Recorder TR-1664 ; Tokyo Transistor (ID = 1804059) Radio
Tokyo Transistor: Candle - Radio Cassette Tape Recorder TR-1664 [Radio] ID = 1804059 401x327
Select picture or schematic to display from thumbnails on the right and click for download.
For model Candle - Radio Cassette Tape Recorder TR-1664 (Japan 712), Tokyo Transistor Industry Co., LTD.; Tokyo:
Ebay auction by user sandy11230 361121523061

Country:  Japan
Manufacturer / Brand:  Tokyo Transistor Industry Co., LTD.; Tokyo
Brand

Candle
Year: 1970 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 16:
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 117; 220; 240 / D: 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out
from Radiomuseum.org Model: Candle - Radio Cassette Tape Recorder TR-1664 - Tokyo Transistor Industry Co.,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 310 x 270 x 100 mm / 12.2 x 10.6 x 3.9 inch

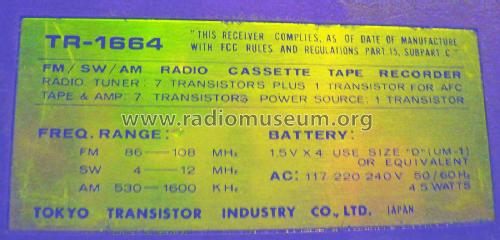

Notes
  • FM : 86 - 108 MHz
  • SW : 4 - 12 MHz
  • AM : 530 - 1600 kHz

Radio tuner : 7 transistors plus 1 transistor for AFC
Tape & Amp. : 7 transistors
Power source : 1 transistor

4.5 W power consumption

Made in Japan 712

Net weight (2.2 lb = 1 kg) 5 lb 0 oz (5 lb) / 2.270 kg

Model page created by a member from A. See "Data change" for further contributors.



All listed radios etc. from Tokyo Transistor Industry Co., LTD.; Tokyo
Here you find 52 models, 46 with images and 3 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
