Candle "Family Radio" Transistor 6 ATR-80A

Candle 'Family Radio' Transistor 6 ATR-80A; Tokyo Transistor (ID = 1535160) Radio Candle 'Family Radio' Transistor 6 ATR-80A; Tokyo Transistor (ID = 1535161) Radio
Candle 'Family Radio' Transistor 6 ATR-80A; Tokyo Transistor (ID = 1535162) Radio Candle 'Family Radio' Transistor 6 ATR-80A; Tokyo Transistor (ID = 1535163) Radio
Candle 'Family Radio' Transistor 6 ATR-80A; Tokyo Transistor (ID = 1535164) Radio Candle 'Family Radio' Transistor 6 ATR-80A; Tokyo Transistor (ID = 2149069) Radio
Candle 'Family Radio' Transistor 6 ATR-80A; Tokyo Transistor (ID = 2149070) Radio Candle 'Family Radio' Transistor 6 ATR-80A; Tokyo Transistor (ID = 2149071) Radio
Candle 'Family Radio' Transistor 6 ATR-80A; Tokyo Transistor (ID = 2162235) Radio Candle 'Family Radio' Transistor 6 ATR-80A; Tokyo Transistor (ID = 2162236) Radio
Use red slider bar for more.

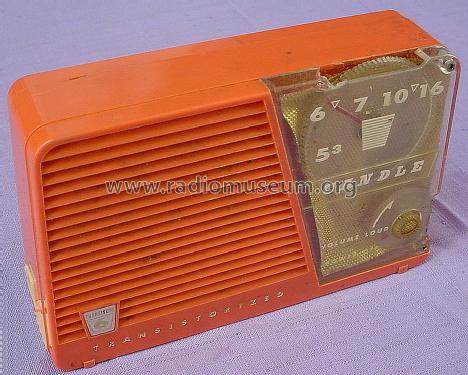

Candle 'Family Radio' Transistor 6 ATR-80A; Tokyo Transistor (ID = 1535160) Radio
Tokyo Transistor: Candle "Family Radio" Transistor 6 ATR-80A [Radio] ID = 1535160 933x747
Select picture or schematic to display from thumbnails on the right and click for download.
For model Candle "Family Radio" Transistor 6 ATR-80A, Tokyo Transistor Industry Co., LTD.; Tokyo:
Picture Courtesy Of EBAY User: akachuck

Country:  Japan
Manufacturer / Brand:  Tokyo Transistor Industry Co., LTD.; Tokyo
Brand

Candle
Year: 1961 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: Selen
Main principle Super-Heterodyne (Super in general); 2 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Batteries / addl. power jack / 1 x 9 / AC 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Candle "Family Radio" Transistor 6 ATR-80A - Tokyo Transistor Industry Co.,
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 140 x 32 x 95 mm / 5.5 x 1.3 x 3.7 inch
Notes

Pocket AM Radio Model Candle Transistor 6.
Made in Japan.

Anschluss für 9V~ - Adapter; Selen-Brückengleichrichter und Siebelko sind im Radio integriert. Eine Variante besitzt einen Umschalter an der Rückseite: BATTERY - LINE (vermutlich soll damit das irrtümliche Laden einer eingelegten Alkalibatterie verhindert werden).

Collectors' prices

Model page created by Franz Scharner. See "Data change" for further contributors.
