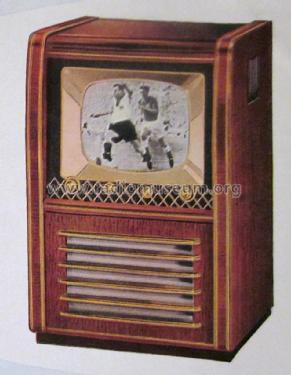

Fernsehtruhe FTB1217
Tonfunk GmbH; Karlsruhe
- Country
- Germany
- Manufacturer / Brand
- Tonfunk GmbH; Karlsruhe
- Year
- 1955
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 266960
- Number of Tubes
- 19
- Valves / Tubes
- MW43-64
- Main principle
- Superheterodyne (common); ZF/IF 26500 kHz
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Fernsehtruhe FTB1217 - Tonfunk GmbH; Karlsruhe
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 975 x 630 x 500 mm / 38.4 x 24.8 x 19.7 inch
- Notes
-
12 Fernsehkanäle im VHF Band I und III. 17" (43cm) Bildröhre. Indirekte Schwungrad-Synchronisierung. Eingebaute Antenne. Empfindlichkeit ca. 5 kTo.
Zuschlag für 3D-Ausstattung und Fernbedienung: DM 50,-
- Price in first year of sale
- 995.00 DM
- Mentioned in
- -- Original prospect or advert
- Author
- Model page created by Bernhard Nagel. See "Data change" for further contributors.
