• Country
• United States of America (USA)

• Manufacturer / Brand
• Topp Import & Export, Inc.; Miami, FL

• Year
• 1970 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 265341

• • Brand: Juliette

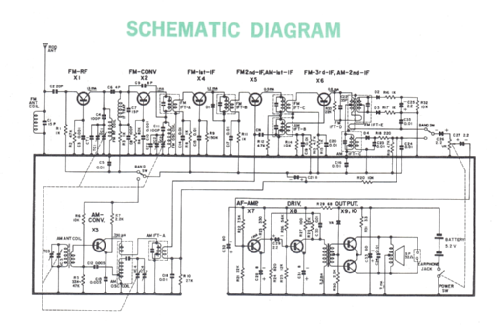

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz; 3 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Dry Batteries / 5.2 (4 x E640 or PM640 or equivalent) Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 1.75 inch = 4.4 cm

• Power out
• 0.14 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Juliette - 10 Transistor Micro AM/FM Radio TR-100F - Topp Import & Export, Inc.;

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 2.625 x 3.438 x 1.25 inch / 67 x 87 x 32 mm

• Notes

• Made in Japan 713

• Author
• Model page created by a member from A. See "Data change" for further contributors.
