Juliette 16 Transistor SH-516

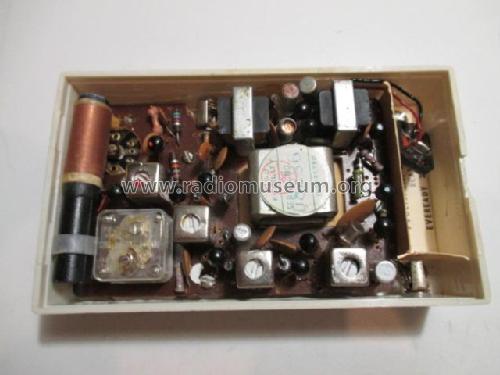

Juliette 16 Transistor SH-516; Topp Import & Export (ID = 2386245) Radio Juliette 16 Transistor SH-516; Topp Import & Export (ID = 2386247) Radio
Juliette 16 Transistor SH-516; Topp Import & Export (ID = 2386246) Radio Juliette 16 Transistor SH-516; Topp Import & Export (ID = 2386248) Radio
Juliette 16 Transistor SH-516; Topp Import & Export (ID = 2386249) Radio Juliette 16 Transistor SH-516; Topp Import & Export (ID = 2386250) Radio
Juliette 16 Transistor SH-516; Topp Import & Export (ID = 2386251) Radio
Use red slider bar for more.

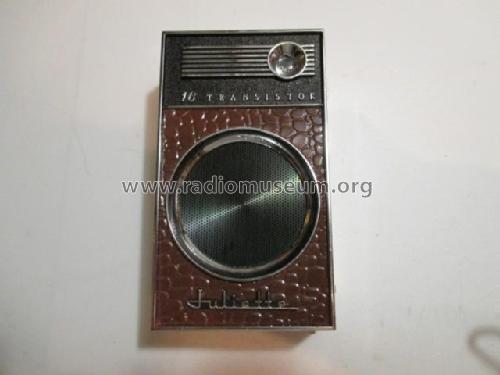

Juliette 16 Transistor SH-516; Topp Import & Export (ID = 2386245) Radio
Topp Import & Export: Juliette 16 Transistor SH-516 [Radio] ID = 2386245 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Juliette 16 Transistor SH-516, Topp Import & Export, Inc.; Miami, FL

Country:  United States of America (USA)
Manufacturer / Brand:  Topp Import & Export, Inc.; Miami, FL
Brand

Juliette
Year: 1969 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 16:
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Batteries / addl. power jack / 1 x 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Juliette 16 Transistor SH-516 - Topp Import & Export, Inc.;
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 65 x 117 x 40 mm / 2.6 x 4.6 x 1.6 inch
Notes

Made in Hong Kong

Mentioned in Collector's Guide To TrR1 Bunis trans.94 (1996, page 135)

Model page created by Aldo Andreani. See "Data change" for further contributors.
