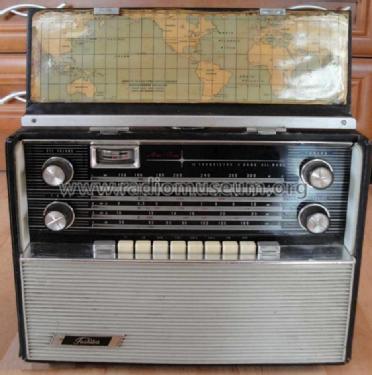

16 Transistor 6 Band All Wave 16 TL-625 FB; Toshiba Corporation; (ID = 1240389) Radio
Toshiba Corporation;: 16 Transistor 6 Band All Wave 16 TL-625 FB [Radio] ID = 1240389 928x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model 16 Transistor 6 Band All Wave 16 TL-625 FB, Toshiba Corporation; Tokyo:
Thanks for Mr.Bada Gábor, Hungary, Salgótarján and Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation.

Country:  Japan
Manufacturer / Brand:  Toshiba Corporation; Tokyo
alternative name

Shibaura Engineering Works
Brand
Tokyo Shibaura
Year: 1966 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 16:
schematic requested
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Wave bands Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
Details
Power type and voltage Dry Batteries / 4 × 1,5 Volt
Loudspeaker 2 Loudspeakers / Ø 4 inch = 10.2 cm
Power out 1.2 W (unknown quality)
from Radiomuseum.org Model: 16 Transistor 6 Band All Wave 16 TL-625 FB - Toshiba Corporation; Tokyo
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 320 x 290 x 120 mm / 12.6 x 11.4 x 4.7 inch
Net weight (2.2 lb = 1 kg) 4.5 kg / 9 lb 14.6 oz (9.912 lb)
Price in first year of sale 7'695.00 BFr
Source of data -- Original prospect or advert

Model page created by Hugo Sneyers. See "Data change" for further contributors.
