4 Band 9 Transistor 9L-780LD

4 Band 9 Transistor 9L-780LD; Toshiba Corporation; (ID = 1316876) Radio 4 Band 9 Transistor 9L-780LD; Toshiba Corporation; (ID = 1317305) Radio
Use red slider bar for more.
4 Band 9 Transistor 9L-780LD; Toshiba Corporation; (ID = 1316876) Radio

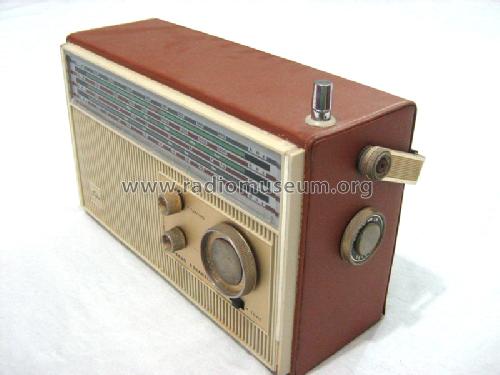

Toshiba Corporation;: 4 Band 9 Transistor 9L-780LD [Radio] ID = 1316876 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model 4 Band 9 Transistor 9L-780LD, Toshiba Corporation; Tokyo

Country:  Japan
Manufacturer / Brand:  Toshiba Corporation; Tokyo
alternative name

Shibaura Engineering Works
Brand
Tokyo Shibaura
Year: 1970 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: 2SC784 2SC784 2SA49 2SA53 2SB54 2SB56 2SB56 2SB365 2SB365
Main principle Superheterodyne (common); none
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Batteries / addl. power jack / 4x 1,5/ ? Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 1.2 W (max.)
from Radiomuseum.org Model: 4 Band 9 Transistor 9L-780LD - Toshiba Corporation; Tokyo
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Notes

Made in Iran by Pars Electric Mfg. Co. Ltd., Teheran [Tehran],
under technical collaboration with  Tokyo Shibaura Electric Co.Ltd.

SW 1: 2.5...7.5 MHz
SW 2: 7.5...22 MHz
MW: 520...1600 kHz
LW: 150...400 kHz

Model page created by Daniel Rosha. See "Data change" for further contributors.
