3 TP-315

3 TP-315; Toshiba Corporation; (ID = 262961) Radio
Use red slider bar for more.
3 TP-315; Toshiba Corporation; (ID = 262961) Radio

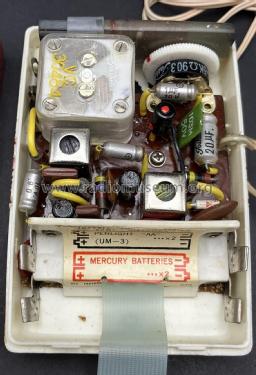

Toshiba Corporation;: 3 TP-315 [Radio] ID = 262961 222x300
Select picture or schematic to display from thumbnails on the right and click for download.
For model 3 TP-315, Toshiba Corporation; Tokyo:
By courtesy of Sarah Lowrey, .transistor.org

Country:  Japan
Manufacturer / Brand:  Toshiba Corporation; Tokyo
alternative name

Shibaura Engineering Works
Brand
Tokyo Shibaura
Year: 1959 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 3:
Main principle Superheterodyne (common)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries
Loudspeaker - only for Earphone!
Power out
from Radiomuseum.org Model: 3 TP-315 - Toshiba Corporation; Tokyo
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 2.5 x 3.5 x 1 inch / 64 x 89 x 25 mm
Notes This 3-transistor Toshiba didn't have a speaker in it -- it was an "earphone-only" radio.
Plastic case in red with white or green with white.
Price in first year of sale 20.00 $
Mentioned in -- Collector info (Sammler)

Model page created by Peter Hoddow. See "Data change" for further contributors.
