3TP-315Y

3TP-315Y; Toshiba Corporation; (ID = 591284) Radio

3TP-315Y; Toshiba Corporation; (ID = 591288) Radio

3TP-315Y; Toshiba Corporation; (ID = 591291) Radio

3TP-315Y; Toshiba Corporation; (ID = 591293) Radio
3TP-315Y; Toshiba Corporation; (ID = 487289) Radio
Use red slider bar for more.

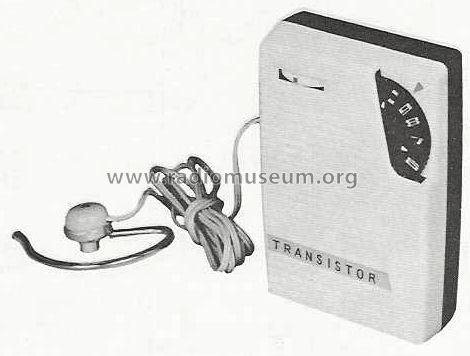

3TP-315Y; Toshiba Corporation; (ID = 487289) Radio
Toshiba Corporation;: 3TP-315Y [Radio] ID = 487289 470x356
Select picture or schematic to display from thumbnails on the right and click for download.
For model 3TP-315Y, Toshiba Corporation; Tokyo:
Photofact Folders, Sams

Country:  Japan
Manufacturer / Brand:  Toshiba Corporation; Tokyo
alternative name

Shibaura Engineering Works
Brand
Tokyo Shibaura
Year: 1959 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 3: 2S178 2S178 2S179
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / AA: 2 x 1.5 Volt
Loudspeaker - only for Earphone!
Power out
from Radiomuseum.org Model: 3TP-315Y - Toshiba Corporation; Tokyo
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Notes Toshiba 3TP-315Y;
US import by Transistor World Corp., 52 Broadway, New York 4, N.Y.
Mentioned in Collector's Guide To TrR1 Bunis trans.94 (1996, page 277)

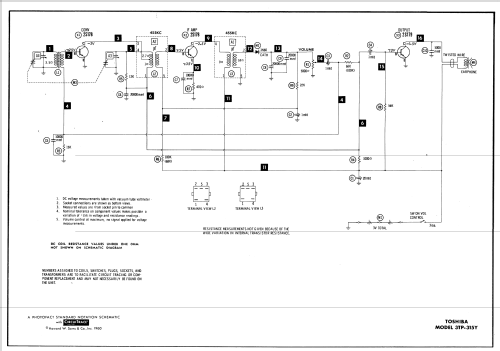

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 492 Folder 23 7-1960)
Literature/Schematics (2) Photofact TSM Transistor Radio Series SAMS (TSM 11, April 1962, pages 133 -136)

Model page created by a member from A. See "Data change" for further contributors.
