5TR-193

5TR-193; Toshiba Corporation; (ID = 329521) Radio

5TR-193; Toshiba Corporation; (ID = 647696) Radio

5TR-193; Toshiba Corporation; (ID = 647697) Radio

5TR-193; Toshiba Corporation; (ID = 647699) Radio

5TR-193; Toshiba Corporation; (ID = 647700) Radio
5TR-193; Toshiba Corporation; (ID = 2222304) Radio 5TR-193; Toshiba Corporation; (ID = 2222302) Radio
5TR-193; Toshiba Corporation; (ID = 2222303) Radio 5TR-193; Toshiba Corporation; (ID = 2222309) Radio
5TR-193; Toshiba Corporation; (ID = 2222305) Radio 5TR-193; Toshiba Corporation; (ID = 2222306) Radio
5TR-193; Toshiba Corporation; (ID = 2222308) Radio 5TR-193; Toshiba Corporation; (ID = 2222307) Radio
5TR-193; Toshiba Corporation; (ID = 416998) Radio 5TR-193; Toshiba Corporation; (ID = 416997) Radio
Use red slider bar for more.
5TR-193; Toshiba Corporation; (ID = 2222304) Radio

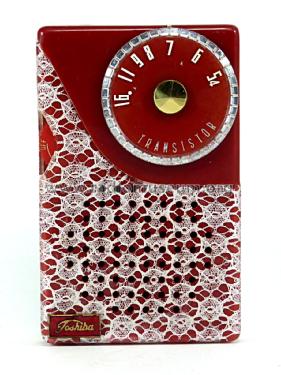

Toshiba Corporation;: 5TR-193 [Radio] ID = 2222304 1200x1600
Select picture or schematic to display from thumbnails on the right and click for download.
For model 5TR-193, Toshiba Corporation; Tokyo

Country:  Japan
Manufacturer / Brand:  Toshiba Corporation; Tokyo
alternative name

Shibaura Engineering Works
Brand
Tokyo Shibaura
Year: 1959 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 4: 2S12 2S13 2S13 2S15 1N60A
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s); Reflex
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.25 inch = 5.7 cm
Power out
from Radiomuseum.org Model: 5TR-193 - Toshiba Corporation; Tokyo
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 2.5 x 4 x 1.3 inch / 64 x 102 x 33 mm
Notes

Earphone jack. Built in ferrite antenna.

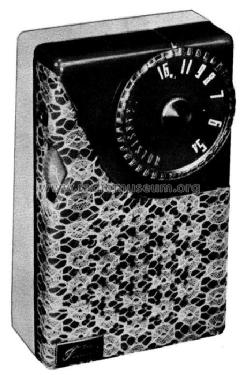

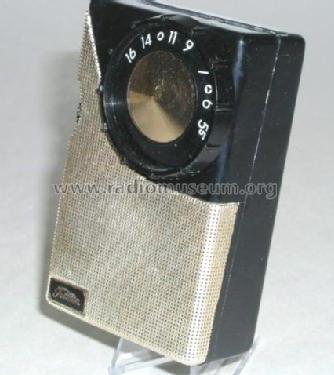

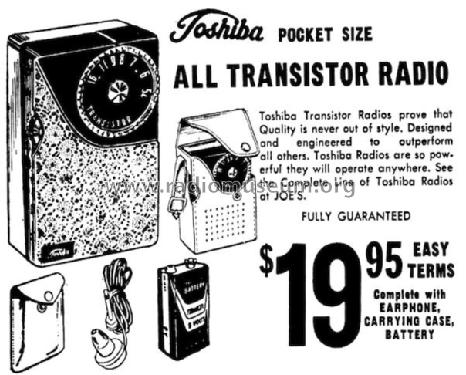

Plastic front in Navy Blue with Grey or Red with white.
Importer USA: Excel Corp. of America, 9 Rockefeller Plaza, New York 20, N. Y.

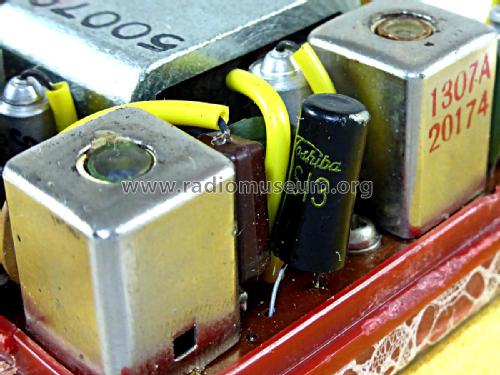

5TR-193 was designed in both a 'lace' pattern and a gold mesh pattern.  Both were identical in dimensions and in circuitry with 4 transistors (convertor, 1st IF, 2nd IF, output) - although named '5' TR there is not a fifth transistor.

Date of manufacture is coded into a Toshiba's radio serial number.  The 1st digit is the final digit of year of manufacture.  The 2nd and 3rd digits are the month of manufacture.  The 5 remaining digits are the base serial number.

Price in first year of sale 30.00 $

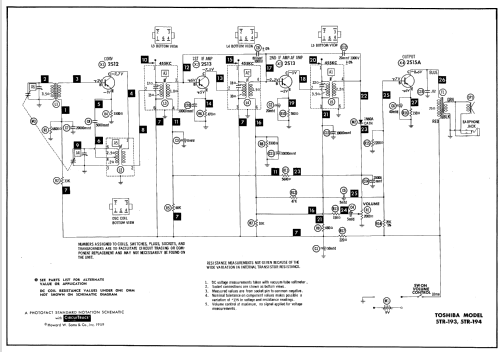

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 7-59, Set 450, Folder 15)
Literature/Schematics (2) Collector's Guide To TrR1 Bunis trans.94 (Model info and picture on page 277)

Model page created by Peter Hoddow. See "Data change" for further contributors.
