Transistor Six 62VT95

Transistor Six 62VT95; Toshiba Corporation; (ID = 1344788) Radio Transistor Six 62VT95; Toshiba Corporation; (ID = 1344790) Radio
Use red slider bar for more.

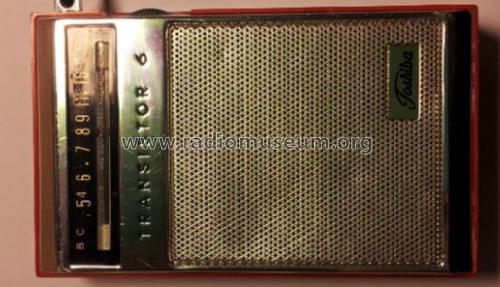

Transistor Six 62VT95; Toshiba Corporation; (ID = 1344788) Radio
Toshiba Corporation;: Transistor Six 62VT95 [Radio] ID = 1344788 514x296
Select picture or schematic to display from thumbnails on the right and click for download.
For model Transistor Six 62VT95, Toshiba Corporation; Tokyo
Country:  Japan
Manufacturer / Brand:  Toshiba Corporation; Tokyo
alternative name
Shibaura Engineering Works
Tokyo Shibaura
Year: 1965 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6:
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Power type and voltage Dry Batteries / 1 x 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch
Power out 0.1 W (unknown quality)
from Model: Transistor Six 62VT95 - Toshiba Corporation; Tokyo
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 92.5 x 57.5 x 27.5 mm / 3.6 x 2.3 x 1.1 inch

Similar to Marconi 2100.

Model page created by a member from HK. See "Data change" for further contributors.
