6TP-354

• Country
• Japan

• Manufacturer / Brand
• Toshiba Corporation; Tokyo

• Year
• 1959 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 107842

• • alternative name: Shibaura Engineering Works
  • Brand: Tokyo Shibaura

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• 2N412 2N410 2N410 2N408 2N408 2N408

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 3 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2 inch = 5.1 cm

• Power out
• 0.04 W (max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 6TP-354 - Toshiba Corporation; Tokyo

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 2.375 x 3.125 x 0.94 inch / 60 x 79 x 24 mm

• Notes

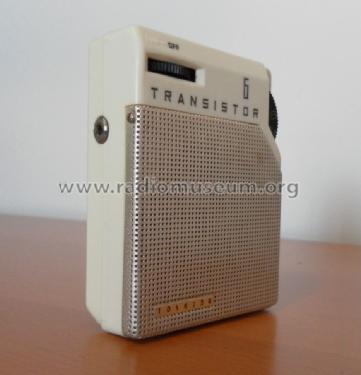

• Toshiba Pocketable Transistor Radio Model 6TP-354.
  Frequency Range 540 - 1600 kHz.

  Available in White, Gray and Brick Red with rich gold speaker grille
  Complete with Mercury batteries, Earphone and plush lined jewel case

• Price in first year of sale
• 33.95 USD

• Mentioned in
• -- Collector info (Sammler)

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 506 folder 20 date 11-60)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
