Transistor Six 6TP-394

• Country
• Japan

• Manufacturer / Brand
• Toshiba Corporation; Tokyo

• Year
• 1962 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 107852

• • alternative name: Shibaura Engineering Works
  • Brand: Tokyo Shibaura

• Picture

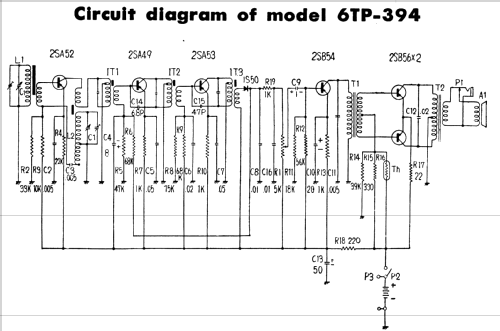

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• 2SA52 2SA49 2SA53 2SB54 2SB56 2SB56 1S50

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / N: 3 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch

• Power out
• 0.04 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Transistor Six 6TP-394 - Toshiba Corporation; Tokyo

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 2.375 x 2.875 x 0.94 mm / 0.1 x 0.1 x 0 inch

• Notes

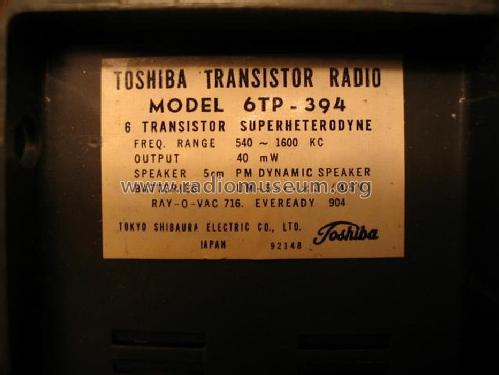

• Toshiba 6 Transistor Superheterodyne 6TP-394.
  Type UM-5 batteries, earphones jack, additional terminals at bottom.

  Available in black, grey or white.

  Board similar to 6TP-395.
