For model 7TM-312 S, Toshiba Corporation; Tokyo

Country:  Japan
Manufacturer / Brand:  Toshiba Corporation; Tokyo
alternative name

Shibaura Engineering Works
Brand
Tokyo Shibaura
Year: 1961 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: 2SA60 2SA92 2SA49 2SA53 2SB54 2SB56 2SB56 1N60
Main principle Superheterodyne (common); 2 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Dry Batteries / 4 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
Power out 0.18 W (unknown quality)
from Radiomuseum.org Model: 7TM-312 S - Toshiba Corporation; Tokyo
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 7 x 4 x 2 inch / 178 x 102 x 51 mm
Notes Toshiba 7TM-312S;
SW: 5.9 - 18 MHz,
also sold as Trancel 7TM-312S made by Toshiba.

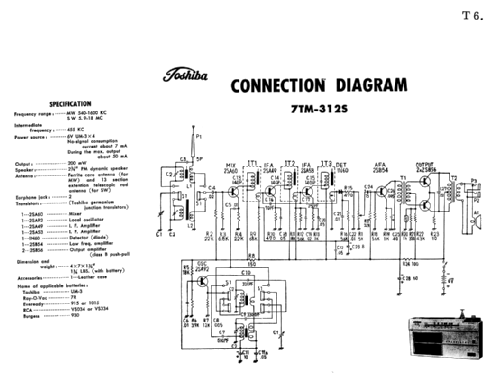

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 542 Folder 15 8-1961)
