8 Transistor 8L-688R

8 Transistor 8L-688R; Toshiba Corporation; (ID = 1486735) Radio
8 Transistor 8L-688R; Toshiba Corporation; (ID = 1486227) Radio 8 Transistor 8L-688R; Toshiba Corporation; (ID = 1486231) Radio
8 Transistor 8L-688R; Toshiba Corporation; (ID = 1486234) Radio 8 Transistor 8L-688R; Toshiba Corporation; (ID = 1486236) Radio
8 Transistor 8L-688R; Toshiba Corporation; (ID = 1486237) Radio 8 Transistor 8L-688R; Toshiba Corporation; (ID = 1486238) Radio
8 Transistor 8L-688R; Toshiba Corporation; (ID = 1633670) Radio
Use red slider bar for more.

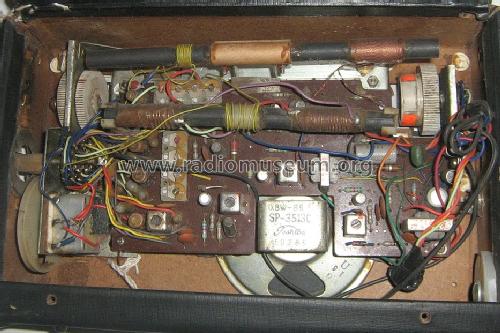

8 Transistor 8L-688R; Toshiba Corporation; (ID = 1486227) Radio
Toshiba Corporation;: 8 Transistor 8L-688R [Radio] ID = 1486227 933x632
Select picture or schematic to display from thumbnails on the right and click for download.
For model 8 Transistor 8L-688R, Toshiba Corporation; Tokyo

Country:  Japan
Manufacturer / Brand:  Toshiba Corporation; Tokyo
alternative name

Shibaura Engineering Works
Brand
Tokyo Shibaura
Year: 1964 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: 2SA57 2SA58 2SA49 2SA53 2SB54 2SB54 2SB56 2SB56 1N60
Main principle Superheterodyne (common)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Dry Batteries / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm
Power out 0.4 W (unknown quality)
from Radiomuseum.org Model: 8 Transistor 8L-688R - Toshiba Corporation; Tokyo
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 9.75 x 6.25 x 3 inch / 248 x 159 x 76 mm
Notes


MW: 520 -1600 KHz
SW1: 1.6 - 4  MHz
SW1:   4 - 10 MHz
SW1:  10 - 22 MHz

See also Toshiba 8L-688L with LW, MW and 2x SW.

Model page created by Daniel Rosha. See "Data change" for further contributors.
