9 TM-40

9 TM-40; Toshiba Corporation; (ID = 2217681) Radio 9 TM-40; Toshiba Corporation; (ID = 2217683) Radio
9 TM-40; Toshiba Corporation; (ID = 2217682) Radio 9 TM-40; Toshiba Corporation; (ID = 262920) Radio
9 TM-40; Toshiba Corporation; (ID = 425114) Radio 9 TM-40; Toshiba Corporation; (ID = 425111) Radio
9 TM-40; Toshiba Corporation; (ID = 425110) Radio 9 TM-40; Toshiba Corporation; (ID = 425113) Radio
9 TM-40; Toshiba Corporation; (ID = 425116) Radio 9 TM-40; Toshiba Corporation; (ID = 425117) Radio
Use red slider bar for more.
9 TM-40; Toshiba Corporation; (ID = 2217681) Radio
Toshiba Corporation;: 9 TM-40 [Radio] ID = 2217681 933x869
Select picture or schematic to display from thumbnails on the right and click for download.
For model 9 TM-40, Toshiba Corporation; Tokyo:
Ebay Seller: radioorphanage, Item: 382339816654

Country:  Japan
Manufacturer / Brand:  Toshiba Corporation; Tokyo
alternative name

Shibaura Engineering Works
Brand
Tokyo Shibaura
Year: 1961 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: 2SA72 2SA52 2SA49 2SA53 2SA54 2SB54 2SB54 2SB56 2SB56
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 9 AF stage(s)
Tuned circuits 3 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 6V 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.75 inch = 9.5 cm
Power out
from Radiomuseum.org Model: 9 TM-40 - Toshiba Corporation; Tokyo
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Notes

Broadcast band superhet with RF stage and three IF stages.

Radio powered by 4 AA batteries in series.

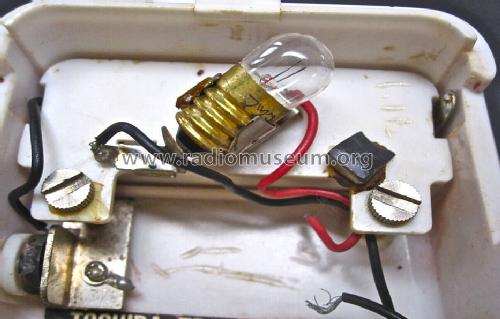

Dial light by 1 AA battery.

Mentioned in -- Collector info (Sammler)

Model page created by Peter Hoddow. See "Data change" for further contributors.
