AM FM Stereo Cassette Player KT-4017

AM FM Stereo Cassette Player KT-4017; Toshiba Corporation; (ID = 1467872) Radio AM FM Stereo Cassette Player KT-4017; Toshiba Corporation; (ID = 1467873) Radio
AM FM Stereo Cassette Player KT-4017; Toshiba Corporation; (ID = 1467874) Radio AM FM Stereo Cassette Player KT-4017; Toshiba Corporation; (ID = 1467875) Radio
AM FM Stereo Cassette Player KT-4017; Toshiba Corporation; (ID = 1467876) Radio AM FM Stereo Cassette Player KT-4017; Toshiba Corporation; (ID = 1467877) Radio
AM FM Stereo Cassette Player KT-4017; Toshiba Corporation; (ID = 1467878) Radio AM FM Stereo Cassette Player KT-4017; Toshiba Corporation; (ID = 1467879) Radio
AM FM Stereo Cassette Player KT-4017; Toshiba Corporation; (ID = 1467882) Radio AM FM Stereo Cassette Player KT-4017; Toshiba Corporation; (ID = 1467883) Radio
Use red slider bar for more.
AM FM Stereo Cassette Player KT-4017; Toshiba Corporation; (ID = 1467872) Radio
Toshiba Corporation;: AM FM Stereo Cassette Player KT-4017 [Radio] ID = 1467872 933x882
Select picture or schematic to display from thumbnails on the right and click for download.
For model AM FM Stereo Cassette Player KT-4017, Toshiba Corporation; Tokyo:
By Courtesy Of EBAY User: art*city

Country:  Japan
Manufacturer / Brand:  Toshiba Corporation; Tokyo
alternative name

Shibaura Engineering Works
Brand
Tokyo Shibaura
Year: 1986 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast (BC) and FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Batteries / addl. power jack / 2 x 1,5 / 3 Volt
Loudspeaker - For headphones or amp.
Power out 0.04 W (max.)
from Radiomuseum.org Model: AM FM Stereo Cassette Player KT-4017 - Toshiba Corporation; Tokyo
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 85.5 x 135 x 37.5 mm / 3.4 x 5.3 x 1.5 inch
Notes

Toshiba Pocket AM-FM Stereo Radio Cassette Player Model KT-4017.

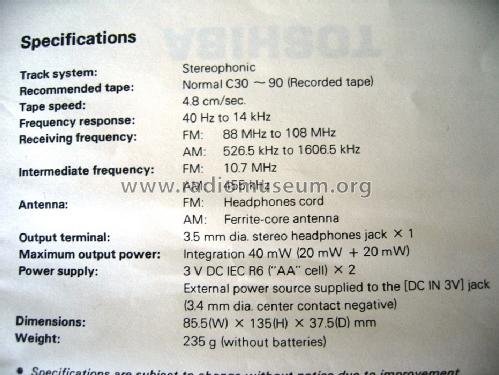

Frequency Response: 40 - 14000 Hz. Auto Stop Mechanism.
Tuning Range: AM 526,5 - 1606,5 kHz, FM 88 - 108 MHz.
Made in Japan.

Net weight (2.2 lb = 1 kg) 0.235 kg / 0 lb 8.3 oz (0.518 lb)

Model page created by Franz Scharner. See "Data change" for further contributors.
