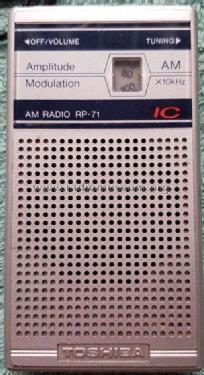

AM Radio RP-71 IC

AM Radio RP-71 IC; Toshiba Corporation; (ID = 2388662) Radio AM Radio RP-71 IC; Toshiba Corporation; (ID = 2388660) Radio
AM Radio RP-71 IC; Toshiba Corporation; (ID = 2388658) Radio AM Radio RP-71 IC; Toshiba Corporation; (ID = 2388659) Radio
AM Radio RP-71 IC; Toshiba Corporation; (ID = 2388661) Radio AM Radio RP-71 IC; Toshiba Corporation; (ID = 2388657) Radio
AM Radio RP-71 IC; Toshiba Corporation; (ID = 2366464) Radio AM Radio RP-71 IC; Toshiba Corporation; (ID = 2366465) Radio
AM Radio RP-71 IC; Toshiba Corporation; (ID = 2366466) Radio AM Radio RP-71 IC; Toshiba Corporation; (ID = 2366468) Radio
Use red slider bar for more.
AM Radio RP-71 IC; Toshiba Corporation; (ID = 2388662) Radio
Toshiba Corporation;: AM Radio RP-71 IC [Radio] ID = 2388662 1400x2044
Select picture or schematic to display from thumbnails on the right and click for download.
For model AM Radio RP-71 IC, Toshiba Corporation; Tokyo

Country:  Japan
Manufacturer / Brand:  Toshiba Corporation; Tokyo
alternative name

Shibaura Engineering Works
Brand
Tokyo Shibaura
Year: 1978 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) TA7641
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 2 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: AM Radio RP-71 IC - Toshiba Corporation; Tokyo
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 65 x 120 x 26 mm / 2.6 x 4.7 x 1 inch
Notes AM Pocket Radio, IC TA7641, Lautsprecher 8 Ohm, 0,25Watt. Accessory: One Earphone

Model page created by Franz Scharner. See "Data change" for further contributors.
