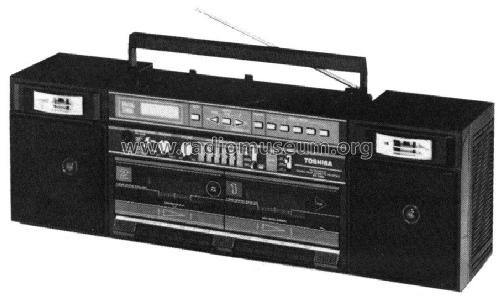

AM/FM Stereo Radio Cassette Recorder RT-7066

AM/FM Stereo Radio Cassette Recorder RT-7066; Toshiba Corporation; (ID = 1820992) Radio

AM/FM Stereo Radio Cassette Recorder RT-7066; Toshiba Corporation; (ID = 1820993) Radio

AM/FM Stereo Radio Cassette Recorder RT-7066; Toshiba Corporation; (ID = 1820994) Radio

AM/FM Stereo Radio Cassette Recorder RT-7066; Toshiba Corporation; (ID = 1820995) Radio

AM/FM Stereo Radio Cassette Recorder RT-7066; Toshiba Corporation; (ID = 1820996) Radio

AM/FM Stereo Radio Cassette Recorder RT-7066; Toshiba Corporation; (ID = 1820997) Radio

AM/FM Stereo Radio Cassette Recorder RT-7066; Toshiba Corporation; (ID = 1820998) Radio

AM/FM Stereo Radio Cassette Recorder RT-7066; Toshiba Corporation; (ID = 1820999) Radio

AM/FM Stereo Radio Cassette Recorder RT-7066; Toshiba Corporation; (ID = 1821001) Radio

AM/FM Stereo Radio Cassette Recorder RT-7066; Toshiba Corporation; (ID = 1821002) Radio
AM/FM Stereo Radio Cassette Recorder RT-7066; Toshiba Corporation; (ID = 1820990) Radio
Use red slider bar for more.
AM/FM Stereo Radio Cassette Recorder RT-7066; Toshiba Corporation; (ID = 1820990) Radio
Toshiba Corporation;: AM/FM Stereo Radio Cassette Recorder RT-7066 [Radio] ID = 1820990 905x536
Select picture or schematic to display from thumbnails on the right and click for download.
For model AM/FM Stereo Radio Cassette Recorder RT-7066, Toshiba Corporation; Tokyo:

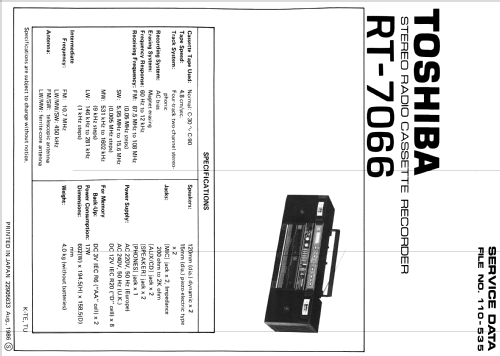

Aus Servicemanual

Country:  Japan
Manufacturer / Brand:  Toshiba Corporation; Tokyo
alternative name

Shibaura Engineering Works
Brand
Tokyo Shibaura
Year: 1986 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle PLL, Phase-locked loop; ZF/IF 450/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 220; 240; 6 x 1,5 Volt
Loudspeaker 4 Loudspeakers
Power out
from Radiomuseum.org Model: AM/FM Stereo Radio Cassette Recorder RT-7066 - Toshiba Corporation; Tokyo
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 602 x 194.5 x 158.5 mm / 23.7 x 7.7 x 6.2 inch
Notes AM/FM Stereo Radio Double Cassette Recorder (Boombox).
Digital synthesized tuning, 5-band graphic equalizer and detachable 2-way/4 speaker systems.
Net weight (2.2 lb = 1 kg) 4 kg / 8 lb 13 oz (8.811 lb)
Source of data -- Original-techn. papers.

Model page created by Franz Scharner. See "Data change" for further contributors.
