FM/MW/9-SW 11Band Receiver RP-F11

ID = 253499

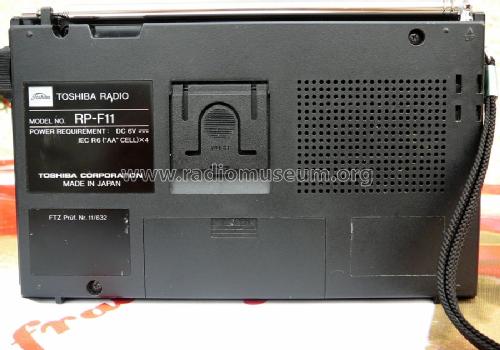

{gbW: "1400", gbH: "1036", mW: "500", mH: "370.0", kb: "156 KB", notes: "For model FM/MW/9-SW 11Band Receiver RP-F11, Toshiba Corporation; Tokyo", title: "Toshiba Corporation; FM/MW/9-SW 11Band Receiver RP-F11 from Karl-Heinz Entrich (1)", ite: "1"} {gbW: "900", gbH: "643", mW: "500", mH: "357.0", kb: "125 KB", notes: "For model FM/MW/9-SW 11Band Receiver RP-F11, Toshiba Corporation; Tokyo:[br]Réglé sur France Bleue 879khz", title: "Toshiba Corporation; FM/MW/9-SW 11Band Receiver RP-F11 from Olivier Palix (1)", ite: "1"} {gbW: "900", gbH: "631", mW: "500", mH: "350.0", kb: "113 KB", notes: "For model FM/MW/9-SW 11Band Receiver RP-F11, Toshiba Corporation; Tokyo:[br]Arrière Toshiba", title: "Toshiba Corporation; FM/MW/9-SW 11Band Receiver RP-F11 from Olivier Palix (1)", ite: "1"} {gbW: "900", gbH: "976", mW: "345.0", mH: "375", kb: "123 KB", notes: "For model FM/MW/9-SW 11Band Receiver RP-F11, Toshiba Corporation; Tokyo:[br]Détail cadran", title: "Toshiba Corporation; FM/MW/9-SW 11Band Receiver RP-F11 from Olivier Palix (1)", ite: "1"} {gbW: "900", gbH: "574", mW: "500", mH: "318.0", kb: "106 KB", notes: "For model FM/MW/9-SW 11Band Receiver RP-F11, Toshiba Corporation; Tokyo", title: "Toshiba Corporation; FM/MW/9-SW 11Band Receiver RP-F11 from Olivier Palix (1)", ite: "1"} {gbW: "1400", gbH: "915", mW: "500", mH: "326.0", kb: "173 KB", notes: "For model FM/MW/9-SW 11Band Receiver RP-F11, Toshiba Corporation; Tokyo", title: "Toshiba Corporation; FM/MW/9-SW 11Band Receiver RP-F11 from Karl-Heinz Entrich (1)", ite: "1"} {gbW: "1400", gbH: "1214", mW: "432.0", mH: "375", kb: "211 KB", notes: "For model FM/MW/9-SW 11Band Receiver RP-F11, Toshiba Corporation; Tokyo", title: "Toshiba Corporation; FM/MW/9-SW 11Band Receiver RP-F11 from Karl-Heinz Entrich (1)", ite: "1"} {gbW: "1400", gbH: "1000", mW: "500", mH: "357.0", kb: "121 KB", notes: "For model FM/MW/9-SW 11Band Receiver RP-F11, Toshiba Corporation; Tokyo:[br]pages 1, 4 of user manual.", title: "Toshiba Corporation; FM/MW/9-SW 11Band Receiver RP-F11 uploaded by Dave Gerg (2)", ite: "2"} {gbW: "1400", gbH: "998", mW: "500", mH: "356.0", kb: "158 KB", notes: "For model FM/MW/9-SW 11Band Receiver RP-F11, Toshiba Corporation; Tokyo:[br]pages 3,4 of user manual.", title: "Toshiba Corporation; FM/MW/9-SW 11Band Receiver RP-F11 uploaded by Dave Gerg (2)", ite: "2"}

FM/MW/9-SW 11Band Receiver RP-F11; Toshiba Corporation; (ID = 1921921) Radio

FM/MW/9-SW 11Band Receiver RP-F11; Toshiba Corporation; (ID = 1717871) Radio

FM/MW/9-SW 11Band Receiver RP-F11; Toshiba Corporation; (ID = 1717885) Radio

FM/MW/9-SW 11Band Receiver RP-F11; Toshiba Corporation; (ID = 1717889) Radio

FM/MW/9-SW 11Band Receiver RP-F11; Toshiba Corporation; (ID = 1925536) Radio

FM/MW/9-SW 11Band Receiver RP-F11; Toshiba Corporation; (ID = 1925537) Radio

FM/MW/9-SW 11Band Receiver RP-F11; Toshiba Corporation; (ID = 2251456) Radio

FM/MW/9-SW 11Band Receiver RP-F11; Toshiba Corporation; (ID = 2251457) Radio

Use red slider bar for more.

Toshiba Corporation;: FM/MW/9-SW 11Band Receiver RP-F11 [Radio] ID = 1921921 1400x1036

Select picture or schematic to display from thumbnails on the right and click for download.

For model FM/MW/9-SW 11Band Receiver RP-F11, Toshiba Corporation; Tokyo

Country:

Japan

Manufacturer / Brand:

Toshiba Corporation; Tokyo

alternative name

Shibaura Engineering Works

Brand

Tokyo Shibaura

Year: 1983 ?

Category: Broadcast Receiver - or past WW2 Tuner

Semiconductors (the count is only for transistors)

22:

Main principle	Superhet, double/triple conversion; ZF/IF 460/10700 kHz
Wave bands	Broadcast, more than 2 SW bands plus FM or UHF.
Details
Power type and voltage	Batteries / addl. power jack / 4 x 1,5 / 6 Volt
Loudspeaker	Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org	Model: FM/MW/9-SW 11Band Receiver RP-F11 - Toshiba Corporation; Tokyo
Material	Plastics (no bakelite or catalin)
Shape	Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD)	198 x 116 x 34 mm / 7.8 x 4.6 x 1.3 inch
Notes	Toshiba Portable FM/MW/9-SW 11Band Receiver Model RP-F11. Telescopic antenna, wrist strap. See also: Toshiba RP-F11L (FM/MW/LW/8-SW 11Band Receiver). 16 transistors, 6 FET, 5 IC, 3 piezo filters (2 on FM,1 on AM). SW2 to SW9 double superhet with 8 crystals. SW1 single conversion (2,3 to 5,1 MHz). Small analog S-meter. Touch buttons with LED indicators.

Model page created by Franz Scharner. See "Data change" for further contributors.

All listed radios etc. from Toshiba Corporation; Tokyo
Here you find 869 models, 793 with images and 205 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.

Collection of Karl-Heinz Entrich (D)

Collection of Olivier Palix (F)
