Junola 6D

Junola 6D; Toshiba Corporation; (ID = 735873) Radio Junola 6D; Toshiba Corporation; (ID = 735875) Radio
Junola 6D; Toshiba Corporation; (ID = 735877) Radio Junola 6D; Toshiba Corporation; (ID = 735890) Radio
Use red slider bar for more.
Junola 6D; Toshiba Corporation; (ID = 735873) Radio
Toshiba Corporation;: Junola 6D [Radio] ID = 735873 845x375
Select picture or schematic to display from thumbnails on the right and click for download.
For model Junola 6D, Toshiba Corporation; Tokyo:

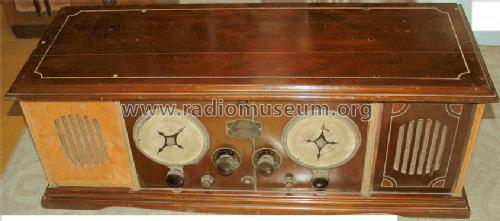

Front view of Junola 6D. The front grill (left) and 4 vertival cross were missing.

Country:  Japan
Manufacturer / Brand:  Toshiba Corporation; Tokyo
alternative name

Shibaura Engineering Works
Brand
Tokyo Shibaura
Year: 1927 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: UV199 UV199 UV199 UV199 UV199 UV199
Main principle Superhet with RF-stage; ZF/IF 42 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries / 4.5 & 90 &-4.5 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Junola 6D - Toshiba Corporation; Tokyo
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes Japanese production of AR-812 made by Shibaura Engineering Works (now Toshiba Ltd.) licenced from G.E. The construction and dial-system were the same however layout was different and width was a little narrower. As automobile has not been popularised at that time in Japan. Large-sized portable radios had no meaning. Thus, this set had no handles. The selling price was as half as that of RCA product, however it's very high price in Japan. Circuit diagram refer to RCA AR-812.
Mentioned in - - Data from my own collection

Model page created by Tadanobu Okabe. See "Data change" for further contributors.



All listed radios etc. from Toshiba Corporation; Tokyo
Here you find 865 models, 762 with images and 206 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
