Marconi 2010

Marconi 2010; Canadian Marconi Co. (ID = 2373468) Radio

Marconi 2010; Canadian Marconi Co. (ID = 2373469) Radio

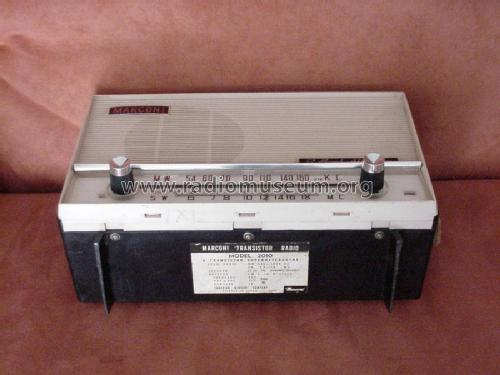

Marconi 2010; Canadian Marconi Co. (ID = 579074) Radio Marconi 2010; Canadian Marconi Co. (ID = 579076) Radio
Use red slider bar for more.
Marconi 2010; Canadian Marconi Co. (ID = 579074) Radio
Canadian Marconi Co.: Marconi 2010 [Radio] ID = 579074 900x675
Select picture or schematic to display from thumbnails on the right and click for download.
For model Marconi 2010, Canadian Marconi Co. Ltd. (CMC, Esterline), Marconi's Wireless; Montreal, QC

Country:  Canada
Manufacturer / Brand:  Canadian Marconi Co. Ltd. (CMC, Esterline), Marconi's Wireless; Montreal, QC
alternative name

CMC Canada || Marconi, Canada
Year: 1963 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: 2SA58 2SA92 2SA49 2SA53 2SB54 2SB54 2SB189 2SB189
Main principle Superheterodyne (common)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Dry Batteries / 4x1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.5 W (unknown quality)
from Radiomuseum.org Model: Marconi 2010 - Canadian Marconi Co. Ltd. CMC,
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Notes

Made in Japan for the Canadian Marconi Company.

The Canadian Marconi Company (CMC), thanks to an agreement stipulated in 1954 with the Emerson Radio Export Corporation of New York, acquired the right to use the Emerson licenses to produce and to sell in Canada receivers with the brand Emerson. I didn't find trace of any agreement between CMC and Toshiba probably because Marconi/Toshiba sets were produced directly in Japan.

Mentioned in Marconi Transistor Radios (see Aldo Andreani's website).
Literature/Schematics (1) Antique Radio Magazine n.54, April 2003, page 56. Written in Italian and English.
Literature/Schematics (2) Radio College of Canada (RCC) (1963 Supplement 62)

Model page created by Aldo Andreani. See "Data change" for further contributors.
