• Country
• Japan

• Manufacturer / Brand
• Toshiba Corporation; Tokyo

• Year
• 1964 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 206899

• • alternative name: Shibaura Engineering Works
  • Brand: Tokyo Shibaura

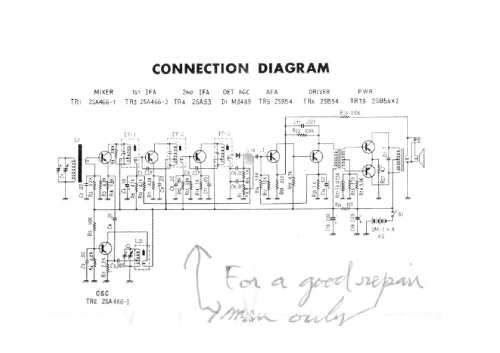

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• 2SA466 2SA466 2SA466 2SA53 2SB54 2SB54 2SB56 2SB56

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

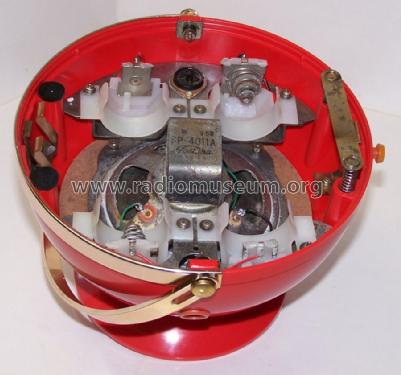

• Model: Rice Bowl 8N-92 - Toshiba Corporation; Tokyo

• Shape
• Design Radio or Novelty / Gadget - fancy or unusual shape.

• Dimensions (WHD)
• 0 x 210 x 0 mm / 0 x 8.3 x 0 inch

• Net weight (2.2 lb = 1 kg)
• 1.5 kg / 3 lb 4.9 oz (3.304 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by José Manuel Silvestre. See "Data change" for further contributors.
