RP-84A
Use red slider bar for more.

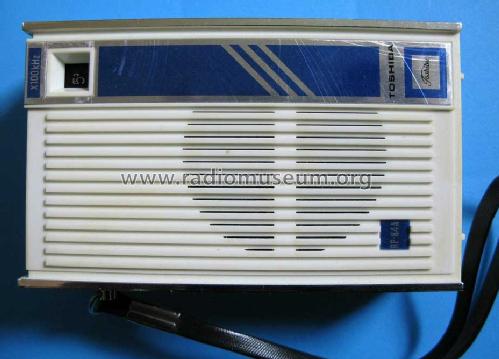

Toshiba Corporation;: RP-84A [Radio] ID = 1428986 930x669
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
alternative name
|
Shibaura Engineering Works | ||||
|---|---|---|---|---|---|
Brand |
Tokyo Shibaura | ||||
| Year: 1970 ?? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | 6: |
| Main principle | Superheterodyne (common) |
|---|---|
| Tuned circuits | 5 AM circuit(s) |
| Wave bands | Broadcast only (MW). |
| Details | |
| Power type and voltage | Dry Batteries / 2 x 1,5 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | 0.2 W (max.) |
| from Radiomuseum.org | Model: RP-84A - Toshiba Corporation; Tokyo |
| Material | Plastics (no bakelite or catalin) |
| Shape | Very small Portable or Pocket-Set (Handheld) < 8 inch. |
| Dimensions (WHD) | 107 x 64 x 31 mm / 4.2 x 2.5 x 1.2 inch |
Model page created by Daniel Rosha. See "Data change" for further contributors.
