RT-294F

RT-294F; Toshiba Corporation; (ID = 451605) Radio RT-294F; Toshiba Corporation; (ID = 451610) Radio
RT-294F; Toshiba Corporation; (ID = 451608) Radio RT-294F; Toshiba Corporation; (ID = 97180) Radio
RT-294F; Toshiba Corporation; (ID = 451606) Radio RT-294F; Toshiba Corporation; (ID = 451607) Radio
RT-294F; Toshiba Corporation; (ID = 451609) Radio RT-294F; Toshiba Corporation; (ID = 451611) Radio
RT-294F; Toshiba Corporation; (ID = 451612) Radio RT-294F; Toshiba Corporation; (ID = 589234) Radio
Use red slider bar for more.
RT-294F; Toshiba Corporation; (ID = 451605) Radio
Toshiba Corporation;: RT-294F [Radio] ID = 451605 933x595
Select picture or schematic to display from thumbnails on the right and click for download.
For model RT-294F, Toshiba Corporation; Tokyo:
Thanks for Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Japan
Manufacturer / Brand:  Toshiba Corporation; Tokyo
alternative name

Shibaura Engineering Works
Brand
Tokyo Shibaura
Year: 1972–1976 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 15:
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 110; 120; 220; 240/ 4 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm
Power out 1 W (unknown quality)
from Radiomuseum.org Model: RT-294F - Toshiba Corporation; Tokyo
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 280 x 155 x 70 mm / 11 x 6.1 x 2.8 inch
Notes Radio/cassette recorder
Net weight (2.2 lb = 1 kg) 2.3 kg / 5 lb 1.1 oz (5.066 lb)
Price in first year of sale 258.00 DM
Literature/Schematics (1) Radio es Televizio Vevö keszülekek 1972-75

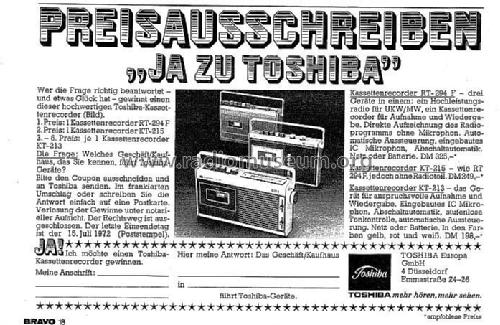

Literature/Schematics (2) TOSHIBA Corporation Catalogs (Toshiba - In Touch with tomorrow - 1973-74 - page 12)

Model page created by Hugo Sneyers. See "Data change" for further contributors.
