• Year
  • 1976
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 143499
    • alternative name: Shibaura Engineering Works
    • Brand: Tokyo Shibaura

 Technical Specifications

  • Number of Transistors
  • 31
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 220; 240 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 60 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org

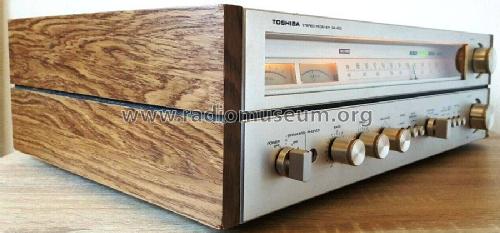

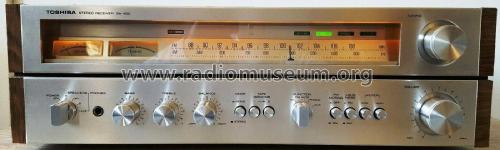

  • Model: SA-420 - Toshiba Corporation; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 500 x 145 x 370 mm / 19.7 x 5.7 x 14.6 inch
  • Notes
  • ICs: 4
    AM/FM-Stereo-Receiver mit 2× 30 Watt (Sinus) an 4 Ohm.
    In FT als Modell SA-420 HiFi vorgestellt, fälschlicherweise wurde nur FM-Bereich genannt.
  • Net weight (2.2 lb = 1 kg)
  • 11.5 kg / 25 lb 5.3 oz (25.33 lb)
  • Price in first year of sale
  • 950.00 DM
  • Source of data
  • -- Original prospect or advert
  • Literature/Schematics (1)
  • HiFi-Jahrbuch 8, S. 488, G. Braun Verlag Karlsruhe 1976
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
