SA500
Use red slider bar for more.

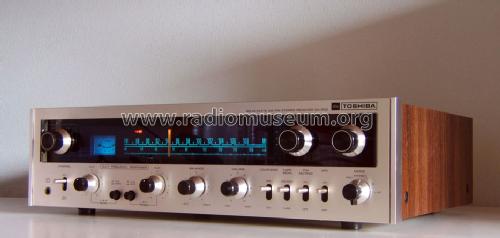

Toshiba Corporation;: SA500 [Radio] ID = 643288 900x294

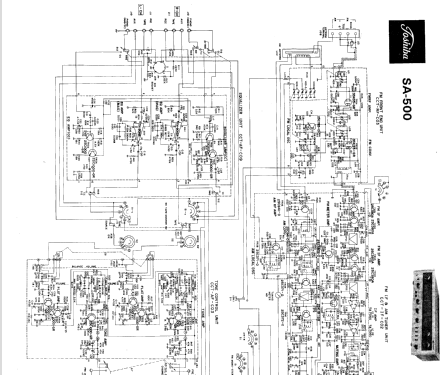

Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
alternative name
|
Shibaura Engineering Works | ||||
|---|---|---|---|---|---|
Brand |
Tokyo Shibaura | ||||
| Year: 1973 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | 54: |
| Main principle | Superheterodyne (common) |
|---|---|
| Wave bands | Broadcast (BC) and FM or UHF. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 220 Volt |
| Loudspeaker | - This model requires external speaker(s). |
| Power out | 100 W (unknown quality) |
| from Radiomuseum.org | Model: SA500 - Toshiba Corporation; Tokyo |
| Material | Metal case |
| Shape | Book-shelf unit. |
| Dimensions (WHD) | 450 x 125 x 356 mm / 17.7 x 4.9 x 14 inch |
| Notes | ICs: 3 AM/FM Stereo Receiver mit 2× 50 Watt (Sinus) an 4 Ohm. OCL-Technik; AFC; Tape-Monitor-Taste; bis zu 4 LS in 2 Gruppen anschliessbar. MFR (Multi Frequency-Responser) Schaltung. |
| Net weight (2.2 lb = 1 kg) | 9.5 kg / 20 lb 14.8 oz (20.925 lb) |
| Source of data | -- Original prospect or advert |
Model page created by Franz Scharner. See "Data change" for further contributors.
