SB300

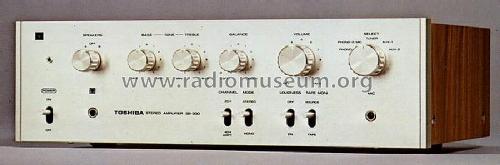

SB300; Toshiba Corporation; (ID = 569811) Ampl/Mixer SB300; Toshiba Corporation; (ID = 671190) Ampl/Mixer
Use red slider bar for more.

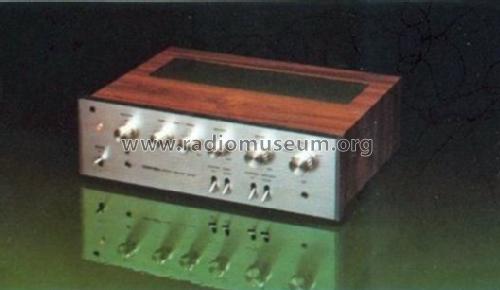

SB300; Toshiba Corporation; (ID = 569811) Ampl/Mixer
Toshiba Corporation;: SB300 [Ampl/Mixer] ID = 569811 529x307
Select picture or schematic to display from thumbnails on the right and click for download.
For model SB300, Toshiba Corporation; Tokyo:
Original prospekt in ~1975.

Country:  Japan
Manufacturer / Brand:  Toshiba Corporation; Tokyo
alternative name

Shibaura Engineering Works
Brand
Tokyo Shibaura
Year: 1973 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) 20:
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 100-240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 40 W (unknown quality)
from Radiomuseum.org Model: SB300 - Toshiba Corporation; Tokyo
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 400 x 115 x 280 mm / 15.7 x 4.5 x 11 inch
Notes Stereo Verstärker mit 2× 20 Watt (Sinus) an 4 Ohm. Eingebaute LS-Matrix für Pseudo-Quadrofonie-Wiedergabe mit 4 LS.
Net weight (2.2 lb = 1 kg) 6.5 kg / 14 lb 5.1 oz (14.317 lb)
Source of data -- Original prospect or advert

Model page created by Franz Scharner. See "Data change" for further contributors.
