Solid State RP-71
Use red slider bar for more.

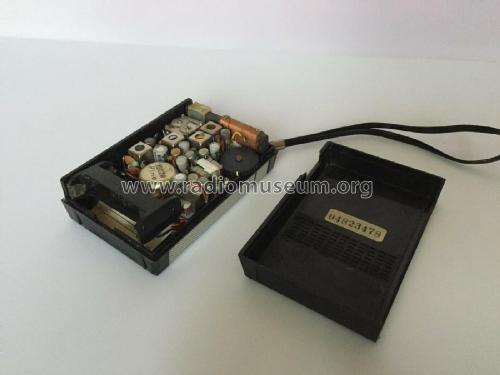

Toshiba Corporation;: Solid State RP-71 [Radio] ID = 2374856 1200x1600
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
alternative name
|
Shibaura Engineering Works | ||||
|---|---|---|---|---|---|
Brand |
Tokyo Shibaura | ||||
| Year: 1970 ?? | Category: Broadcast Receiver - or past WW2 Tuner |
| Main principle | Superheterodyne (common) |
|---|---|
| Wave bands | Broadcast only (MW). |
| Details | |
| Power type and voltage | Dry Batteries / AA: 2 x 1.5 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | |
| from Radiomuseum.org | Model: Solid State RP-71 - Toshiba Corporation; Tokyo |
| Material | Plastics (no bakelite or catalin) |
| Shape | Very small Portable or Pocket-Set (Handheld) < 8 inch. |
| Dimensions (WHD) | 70 x 100 x 32 mm / 2.8 x 3.9 x 1.3 inch |
Model page created by Aldo Andreani. See "Data change" for further contributors.
