SS27

SS27; Toshiba Corporation; (ID = 671169) Speaker-P SS27; Toshiba Corporation; (ID = 570339) Speaker-P
SS27; Toshiba Corporation; (ID = 2106165) Speaker-P
Use red slider bar for more.

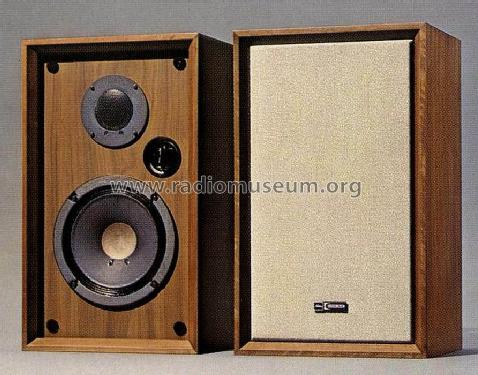

SS27; Toshiba Corporation; (ID = 671169) Speaker-P
Toshiba Corporation;: SS27 [Speaker-P] ID = 671169 894x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model SS27, Toshiba Corporation; Tokyo:

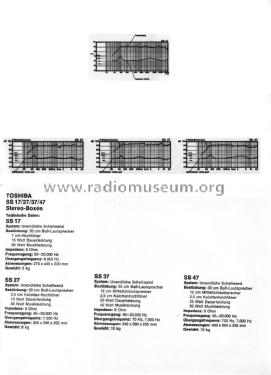

Prospekt

Country:  Japan
Manufacturer / Brand:  Toshiba Corporation; Tokyo
alternative name

Shibaura Engineering Works
Brand
Tokyo Shibaura
Year: 1973 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: SS27 - Toshiba Corporation; Tokyo
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 300 x 500 x 252 mm / 11.8 x 19.7 x 9.9 inch
Notes 2-Weg-Box geschlossen mit 15 Watt Sinus an 8 Ohm; 45-20000 Hz.
200mm Tieftöner, 25mm Kalotten-Hochtöner, Frequenzweiche Übergang bei 7000Hz.
Net weight (2.2 lb = 1 kg) 6 kg / 13 lb 3.5 oz (13.216 lb)
Source of data -- Original prospect or advert
Literature/Schematics (1) TOSHIBA Corporation Catalogs (In Touch with tomorrow - 1973-74 - page 66-68)

Model page created by Franz Scharner. See "Data change" for further contributors.
