SS47

SS47; Toshiba Corporation; (ID = 671171) Speaker-P SS47; Toshiba Corporation; (ID = 570341) Speaker-P
SS47; Toshiba Corporation; (ID = 2106167) Speaker-P
Use red slider bar for more.
SS47; Toshiba Corporation; (ID = 671171) Speaker-P

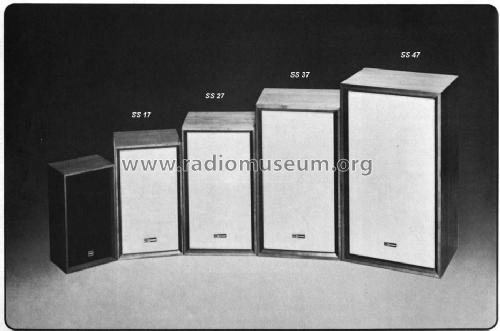

Toshiba Corporation;: SS47 [Speaker-P] ID = 671171 888x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model SS47, Toshiba Corporation; Tokyo:
Prospekt

Country:  Japan
Manufacturer / Brand:  Toshiba Corporation; Tokyo
alternative name

Shibaura Engineering Works
Brand
Tokyo Shibaura
Year: 1973 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: SS47 - Toshiba Corporation; Tokyo
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 400 x 680 x 330 mm / 15.7 x 26.8 x 13 inch
Notes 3-Weg-Box geschlossen mit 25 Watt Sinus an 8 Ohm; 35-20000 Hz.
300mm Tieftöner, 120mm Mitteltöner, 25mm Kalotten-Hochtöner, Frequenzweiche Übergänge bei 700/7000Hz.
Net weight (2.2 lb = 1 kg) 15 kg / 33 lb 0.6 oz (33.04 lb)
Source of data -- Original prospect or advert
Literature/Schematics (1) TOSHIBA Corporation Catalogs (In Touch with tomorrow - 1973-74 - page 66-68)

Model page created by Franz Scharner. See "Data change" for further contributors.



All listed radios etc. from Toshiba Corporation; Tokyo
Here you find 867 models, 791 with images and 205 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
