Stereo Cassette Deck PC-530

Toshiba Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1978 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 315055
    • alternative name: Shibaura Engineering Works
    • Brand: Tokyo Shibaura

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Alternating Current supply (AC) / 50Hz, 240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Stereo Cassette Deck PC-530 - Toshiba Corporation; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 420 x 151 x 281 mm / 16.5 x 5.9 x 11.1 inch
  • Notes

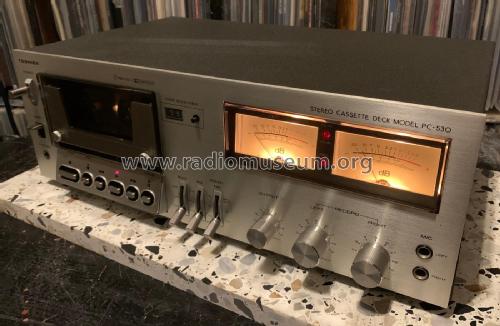

  • Toshiba PC-530 Stereo Cassette Deck

    Type: 2-head, single compact cassette deck
    Track System: 4-track, 2-channel stereo
    Tape Speed: 4.75 cm/s
    Heads: 1 x record/playback, 1 x erase
    Tape Type: type I, CrO2
    Noise Reduction: B
    Frequency Response: 30 Hz to 16 kHz  (CrO2 tape)
    Signal to Noise Ratio: 59 dB  (dolby B)
    Wow and Flutter: 0.11 %
    Total Harmonic Distortion: 1 %
    Input: 70 mV (line), 0.25 mV (mic)
    Output: 0.5 V (line)

  • Net weight (2.2 lb = 1 kg)
  • 5.4 kg / 11 lb 14.3 oz (11.894 lb)
  • Author
  • Model page created by Bartosz Szwed. See "Data change" for further contributors.
