Stereo Cassette Deck PC-G22K

Toshiba Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1984
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 258699
    • alternative name: Shibaura Engineering Works
    • Brand: Tokyo Shibaura

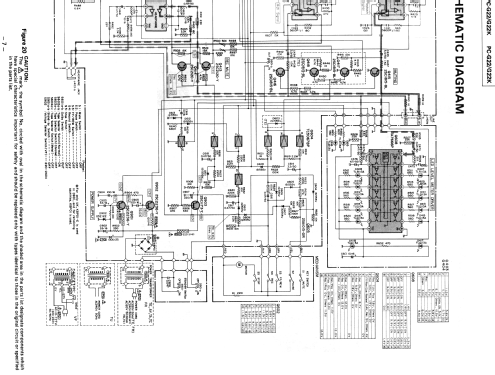

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Alternating Current supply (AC)
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Stereo Cassette Deck PC-G22K - Toshiba Corporation; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 420 x 112 x 278 mm / 16.5 x 4.4 x 10.9 inch
  • Notes

  • Toshiba Frontloading 2-Head Stereo Cassette Player/Recorder Model PC-G22K
    Metal Tape Capability ( 30 - 16000 Hz)
    Line IN, Mic IN Line OUT, Headphone
    Power Consumption 11 Watts.
    Power Supply:
    Suffix TA, TC - AC 120V - 50/60Hz
    Finish: Black Cabinet - Suffix TA, TC

  • Net weight (2.2 lb = 1 kg)
  • 3.5 kg / 7 lb 11.3 oz (7.709 lb)
  • Mentioned in

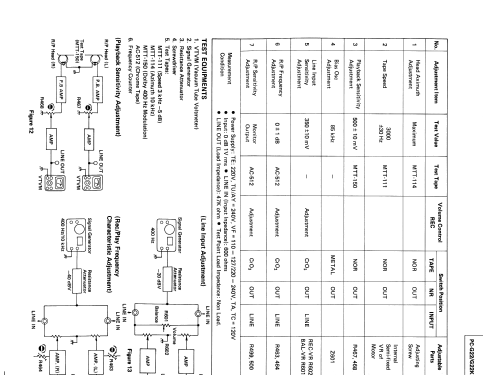

  • - - Manufacturers Literature (Service Manual - File No. 100-200)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
