Clarion AC85 Ch= G-83
Clarion, Transformer Corp. of America (TCA); Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Clarion, Transformer Corp. of America (TCA); Chicago, IL
- Year
- 1931/1932
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 63404
-
- Brand: Clarion
Click on the schematic thumbnail to request the schematic as a free document.

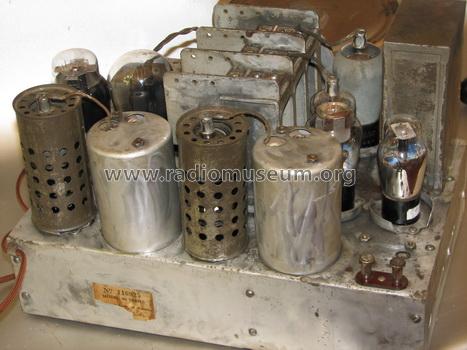

- Number of Tubes
- 7
- Main principle
- Superhet with RF-stage; ZF/IF 175 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 110-120 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Clarion AC85 Ch= G-83 - Clarion, Transformer Corp. of
- Shape
- Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
- Dimensions (WHD)
- 425 x 495 x 280 mm / 16.7 x 19.5 x 11 inch
- Notes
-
The lower left-hand knob is for volume control. The lower right-hand knob is on/off and tone control. The upper center is for tuning.
Stein makes mention of 8 tubes (in his book "Cathedral &Tombstone Radios").
- Net weight (2.2 lb = 1 kg)
- 15.8 kg / 34 lb 12.8 oz (34.802 lb)
- Price in first year of sale
- 49.95 $
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
- Mentioned in
- Machine Age to Jet Age II (page 78.)
- Literature/Schematics (1)
- Riders 1-13
- Literature/Schematics (2)
- Cathedral & Tombstone Radios (page 71.)
- Literature/Schematics (4)
- The Transformer Folder.
