• Year
  • 1931/1932
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 63407
    • Brand: Clarion

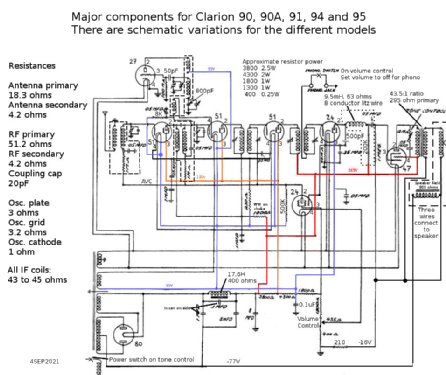

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superhet with RF-stage; ZF/IF 175 kHz
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 115 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Clarion AC94 - Clarion, Transformer Corp. of
  • Shape
  • Console, Highboy (legs > 50 %).
  • Dimensions (WHD)
  • 24.5 x 40 x 13.5 inch / 622 x 1016 x 343 mm
  • Notes
  • Line frequency: 50-60 cycl., AVC.

  • Price in first year of sale
  • 89.50 $
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 2 = 1932 (Models 1931/1932)
  • Literature/Schematics (1)
  • Riders 2-2, 3, 4, 5
  • Literature/Schematics (4)
  • The Transformer Folder.
