5054 Tapered dial

5054 ; Trav-Ler Karenola (ID = 20847) Radio

5054 ; Trav-Ler Karenola (ID = 20848) Radio

5054 ; Trav-Ler Karenola (ID = 20849) Radio

5054 ; Trav-Ler Karenola (ID = 310663) Radio
5054 ; Trav-Ler Karenola (ID = 322215) Radio 5054 ; Trav-Ler Karenola (ID = 322217) Radio

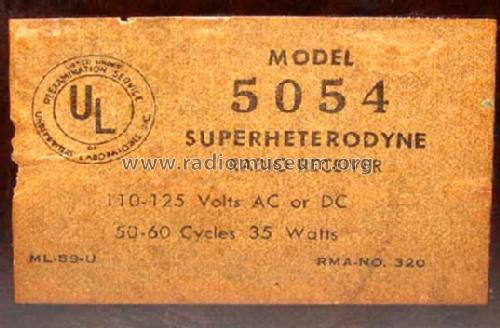

5054 ; Trav-Ler Karenola (ID = 322218) Radio 5054 ; Trav-Ler Karenola (ID = 386813) Radio
5054 ; Trav-Ler Karenola (ID = 1203602) Radio 5054 ; Trav-Ler Karenola (ID = 1926629) Radio
5054 ; Trav-Ler Karenola (ID = 1926630) Radio
Use red slider bar for more.
5054 ; Trav-Ler Karenola (ID = 322215) Radio
Trav-Ler Karenola: 5054 [Radio] ID = 322215 624x482
Select picture or schematic to display from thumbnails on the right and click for download.
For model 5054 Tapered dial, Trav-Ler Karenola Radio & Television Corp.(Travler); Chicago:
Ebay Nr. 200103195167 Bild bearbeitet.

Country:  United States of America (USA)
Manufacturer / Brand:  Trav-Ler Karenola Radio & Television Corp.(Travler); Chicago
Year: 1947 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 12SA7 12SQ7 50L6 35Z5
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 110-125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: 5054 [Tapered dial] - Trav-Ler Karenola Radio &
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 170 x 120 x 115 mm / 6.7 x 4.7 x 4.5 inch
Notes colors: brown, ivory.
Net weight (2.2 lb = 1 kg) 1.2 kg / 2 lb 10.3 oz (2.643 lb)
Price in first year of sale 145.00 SFR
External source of data E. Erb 3-907007-36-0
Source of data -- Collector info (Sammler)
Circuit diagram reference Die «Thali Schemasammlung» führt das Modell.
Mentioned in Rider's Perpetual, Volume 19 = covering late 1948 to early 1949 (Copyright 1949)
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 3-48, Set 36, Folder 26)


All listed radios etc. from Trav-Ler Karenola Radio & Television Corp.(Travler); Chicago
Here you find 521 models, 266 with images and 423 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
