56C42

56C42 ; Trav-Ler Karenola (ID = 1224791) Radio 56C42 ; Trav-Ler Karenola (ID = 1224792) Radio
56C42 ; Trav-Ler Karenola (ID = 1224794) Radio
Use red slider bar for more.

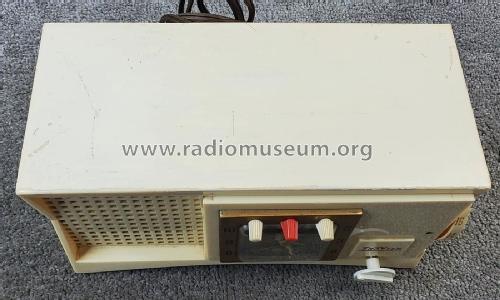

56C42 ; Trav-Ler Karenola (ID = 1224791) Radio
Trav-Ler Karenola: 56C42 [Radio] ID = 1224791 640x507
Select picture or schematic to display from thumbnails on the right and click for download.
For model 56C42, Trav-Ler Karenola Radio & Television Corp.(Travler); Chicago:
American Radio Design Greg Mercurio

Country:  United States of America (USA)
Manufacturer / Brand:  Trav-Ler Karenola Radio & Television Corp.(Travler); Chicago
Year: 1955 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AV6 50C5 35W4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 110-120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 56C42 - Trav-Ler Karenola Radio &
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Notes The model Trav-ler 56 C42 looks identical to the 55 C54 ohter than it having black clock knobs.
External source of data Guest Le Holand, Tampa, USA.

Model page created by Ernst Erb. See "Data change" for further contributors.
