- Country
- United States of America (USA)
- Manufacturer / Brand
- Trav-Ler Karenola Radio & Television Corp.(Travler); Chicago
- Year
- 1954
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 143559
Sams Photofact Folders
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- 25L6GT
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- from Radiomuseum.org
- Model: 7053 - Trav-Ler Karenola Radio &
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Dimensions (WHD)
- 10.5 x 6.25 x 12.5 inch / 267 x 159 x 318 mm
- Notes

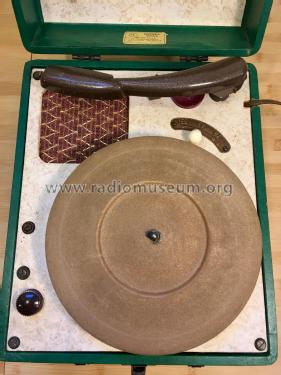

- The Travler Model 7053 is an AC Operated 1 Tube Phono Amplifier with 3 Speed Manual Record Player.
- Net weight (2.2 lb = 1 kg)
- 8 lb (8 lb 0 oz) / 3.632 kg
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 1-55, Set 262, Folder 14)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
