• Year
  • 1958
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 84659

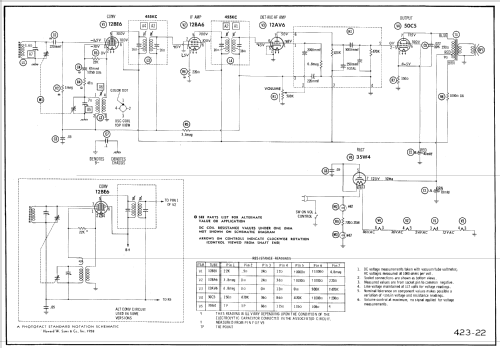

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • AC/DC-set / 110 - 120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: T213 Ch= 236 - Trav-Ler Karenola Radio &
  • Shape
  • Tablemodel, with any shape - general.
  • Notes
  • 4" x 6" PM elliptical speaker.
  • Circuit diagram reference
  • Beitman Radio Diagrams Vol. 18, 1958
  • Author
  • Model page created by Egon Penker. See "Data change" for further contributors.
