- Country
- United States of America (USA)
- Manufacturer / Brand
- Tri-City Radio Supply Co. (Tresco); Davenport, Iowa
- Year
- 1925
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 63631
- Number of Tubes
- 3
- Main principle
- TRF with regeneration; 2 AF stage(s)
- Tuned circuits
- 1 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage and/or dry batteries
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org

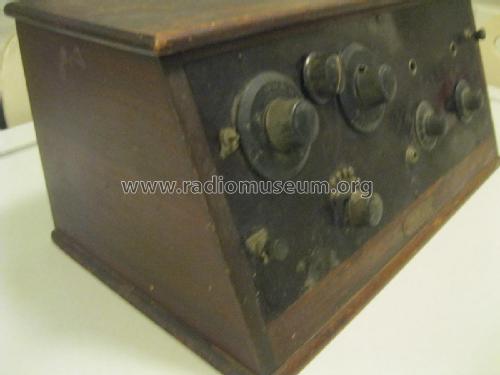

- Model: Trescola 3 - Tri-City Radio Supply Co.
- Shape
- Tablemodel, slant panel.
- Dimensions (WHD)
- 20 x 10.75 x 9 inch / 508 x 273 x 229 mm
- Notes
-
Two dials (primary tuning control knobs)
The Trescola 3 was very similar to the 3-tube W.F. Main Standard Splendid Grand also made by Tri-City Electric Supply for the W. F. Main Co.
- Price in first year of sale
- 50.00 $
- External source of data
- Ernst Erb
- Source of data
- Radio Collector`s Guide 1921-1932
- Mentioned in
- Radio Manufacturers of the 1920's, Vol. 3
- Other Models
-
Here you find 80 models, 53 with images and 2 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Tri-City Radio Supply Co. (Tresco); Davenport, Iowa
