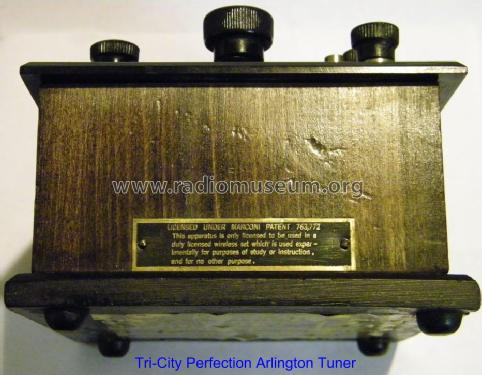

Perfection A. S. 3000M Arlington Tuner

Tri-City Radio Supply Co. (Tresco); Davenport, Iowa

  • Year
  • 1919
  • Category
  • Radio module pre 1926 (not a part, not a key)
  • Radiomuseum.org ID
  • 187126

 Technical Specifications

  • Main principle
  • Tuner pre 1926 (not a wave trap)
  • Tuned circuits
  • 1 AM circuit(s)
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Storage and/or dry batteries
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Perfection A. S. 3000M Arlington Tuner - Tri-City Radio Supply Co.
  • Shape
  • Tablemodel, Box - most often with Lid (NOT slant panel).
  • Dimensions (WHD)
  • 5 x 2.75 x 5 inch / 127 x 70 x 127 mm
  • Notes
  • The Arlington Tuner used a simple Audion hookup to make a regenerative receiver. With proper inductance's and tuning condensers it would tune from below 1,500 Meters up to about 10,000 Meters.
  • Price in first year of sale
  • 15.00 $
  • Author
  • Model page created by Alan Larsen. See "Data change" for further contributors.
