• Year
  • 1934 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 108857

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 130; 140; 220; 240 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
  • Material
  • Wooden case
  • from Radiomuseum.org

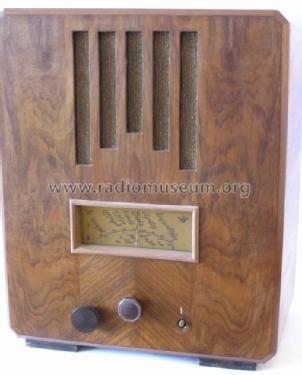

  • Model: 511 - Trialmo, Compagnie
  • Shape
  • Tablemodel, high profile (upright - NOT Cathedral nor decorative).
  • Dimensions (WHD)
  • 360 x 430 x 240 mm / 14.2 x 16.9 x 9.4 inch
  • Net weight (2.2 lb = 1 kg)
  • 11.2 kg / 24 lb 10.7 oz (24.67 lb)
  • Author
  • Model page created by Klaus Peter Dickel. See "Data change" for further contributors.
