Free Point Auxiliary Set Tester 1166

Triplett Electrical Instrument Co.; Bluffton (OH)

  • Year
  • 1934 ?
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 63652

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: Free Point Auxiliary Set Tester 1166 - Triplett Electrical Instrument
  • Shape
  • Tablemodel, with any shape - general.
  • Notes

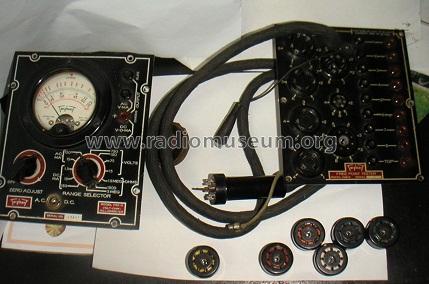

  • Triplett Free-Point Auxiliary Set Tester model 1166.
    Four sockets for "present day tubes", extra connections can be added.
    Leatherette cover. Avaliable as chassis only for 13 USD. Cover separately available for 5 USD.
  • Price in first year of sale
  • 17.00 $
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 4 = ca. 1934 and before
