• Country
• United States of America (USA)

• Manufacturer / Brand
• Triplett Electrical Instrument Co.; Bluffton (OH)

• Year
• 1935

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 63654

Click on the schematic thumbnail to request the schematic as a free document.

• Power type and voltage
• No Power needed

• Loudspeaker
• - - No sound reproduction output.

• from Radiomuseum.org

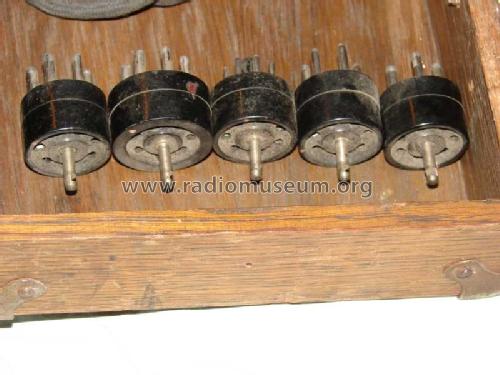

• Model: Free Point Tester 1166A - Triplett Electrical Instrument

• Notes
• Don't confuse with 1166.

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 7 = 1936 and before

• Other Models

• Here you find 139 models, 132 with images and 50 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
