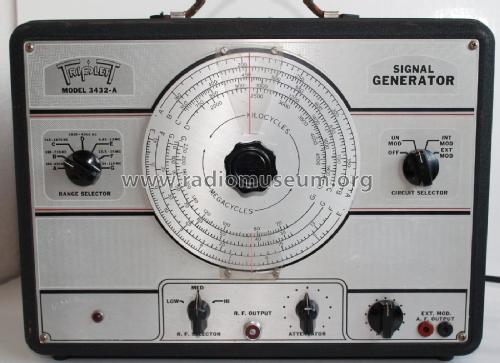

Signal Generator 3432-A
Triplett Electrical Instrument Co.; Bluffton (OH)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Triplett Electrical Instrument Co.; Bluffton (OH)
- Year
- 1956
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 99186
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 110-120 Volt
- Loudspeaker
- - - No sound reproduction output.
- from Radiomuseum.org
- Model: Signal Generator 3432-A - Triplett Electrical Instrument
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 15.2 x 11.2 x 6.25 inch / 386 x 284 x 159 mm
- Notes
- Covers complete range from 160 kc to 110 mc, 220 mc using harmonics.
- Price in first year of sale
- 98.00 $
- Literature/Schematics (1)
- Allied Radio Catalog Nº 150, 1956
- Author
- Model page created by Vitor Oliveira. See "Data change" for further contributors.
