FM-AM Signal Generator 3433

Triplett Electrical Instrument Co.; Bluffton (OH)

Data
Forum
Pictures
Collections

  • Year
  • 1948
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 158746

Click on the schematic thumbnail to request the schematic as a free document.

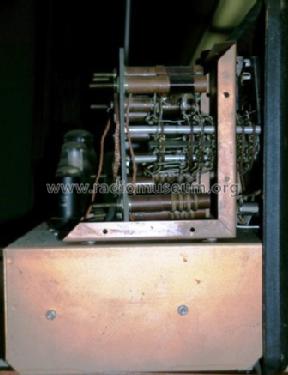

 Technical Specifications

  • Number of Tubes
  • 8
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Alternating Current supply (AC)
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: FM-AM Signal Generator 3433 - Triplett Electrical Instrument
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 15 x 10 x 8 inch / 381 x 254 x 203 mm
  • Notes
  • This unit covers frequencies from 100KHz to 120MHz in ten bands. It features internal modulation at 60 or 400 Hz, or external modulation. It has a built-in crystal for calibration and a nice meter for reading output.
  • Net weight (2.2 lb = 1 kg)
  • 35 lb (35 lb 0 oz) / 15.890 kg
  • Price in first year of sale
  • 154.00 $
  • Author
  • Model page created by Meyer Rochwerger. See "Data change" for further contributors.

 Collections | Museums | Literature

Collections

The model FM-AM Signal Generator is part of the collections of the following members.

 Forum

Forum contributions about this model: Triplett Electrical: FM-AM Signal Generator 3433

Threads: 1 | Posts: 3

I could have made my questions much simpler. I apologize. Here are two questions that will help me diagnose my problem:

If you place one Ohm meter lead on ground and another of the lo rf output, what resistances do you get for each of the multiplier switch settings?

X1 = ?Ω

X10 = ?Ω

X100 = ?Ω

X1M = ?Ω

X10M = ?Ω

HI = ?Ω



If you place one Ohm meter lead on ground and another of the HI rf output, what resistances do you get for each of the multiplier switch settings?

X1 = ?Ω

X10 = ?Ω

X100 = ?Ω

X1M = ?Ω

X10M = ?Ω

HI = ?Ω

Thank you.

Steffen Demos, 08.Jul.12
