Precision AC-DC Volt-Ohm-Milliammeter 842 L
Triplett Electrical Instrument Co.; Bluffton (OH)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Triplett Electrical Instrument Co.; Bluffton (OH)
- Year
- 1939
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 224268
- Wave bands
- - without
- Power type and voltage
- Dry Batteries / 4.5 & 45 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Precision AC-DC Volt-Ohm-Milliammeter 842 L - Triplett Electrical Instrument
- Shape
- Portable set > 8 inch (also usable without mains)
- Notes
-
Precision AC-DC Volt-Ohm-Decibel-Milliammeter, Model 842 L
DC Volts: 10 - 50 - 250 - 1000 - 2500 @ 1 kΩ/V
DC mA: 1 - 10 - 50 - 250
DC A: 1 - 10
Ohms: 400 Ω - 100 kΩ - 1 MΩ - 10 MΩ
AC Volts: 10 - 50 - 250 - 1000 - 2500 @ 1 kΩ/V
Decibel: five ranges from -10 to +63
- Price in first year of sale
- 22.00 USD
- Mentioned in

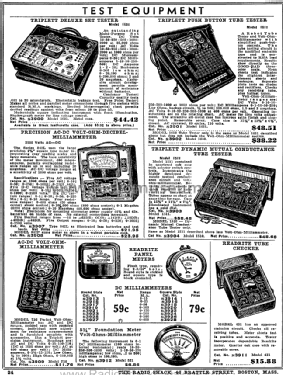

- Radio Shack Catalog (1939, page 24)
- Author
- Model page created by a member from D. See "Data change" for further contributors.
