• Country
• United States of America (USA)

• Manufacturer / Brand
• Triplett Electrical Instrument Co.; Bluffton (OH)

• Year
• 1934 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 63655

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• Dry Batteries / 1,5 & 22,5 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Wooden case

• from Radiomuseum.org

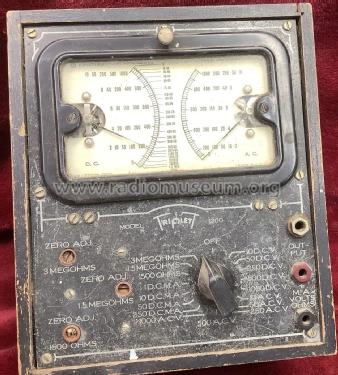

• Model: Volt-Ohm-Milliammeter 1200 - Triplett Electrical Instrument

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 7 x 5 x 8 inch / 178 x 127 x 203 mm

• Notes

• 0-1000 V AC/DC, 2000 ohm/v, 0-250 mA, 0-3 MOhm.

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 5 = ca. 1934 and before
