Trix-Radio-Car BMW-2000CS 5 Transistoren
Use red slider bar for more.
Trix Vereinigte: Trix-Radio-Car BMW-2000CS [Radio] ID = 971981 750x466
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1967 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | 5: |
|---|
| Main principle | Superheterodyne (common) |
|---|---|
| Tuned circuits | 5 AM circuit(s) |
| Wave bands | Broadcast only (MW). |
| Details | |
| Power type and voltage | Dry Batteries / 9 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | |
| from Radiomuseum.org | Model: Trix-Radio-Car BMW-2000CS [5 Transistoren] - Trix Vereinigte |
| Material | Plastics (no bakelite or catalin) |
| Shape | Design Radio or Novelty / Gadget - fancy or unusual shape. |
| Dimensions (WHD) | 80 x 58 x 208 mm / 3.1 x 2.3 x 8.2 inch |
| Notes | Trix-Radio-Car BMW 2000CS, 1967; Empfangsbereich 515 - 1620 kHz, 1 Diode, 5 Kreise, Ferritstabantenne.

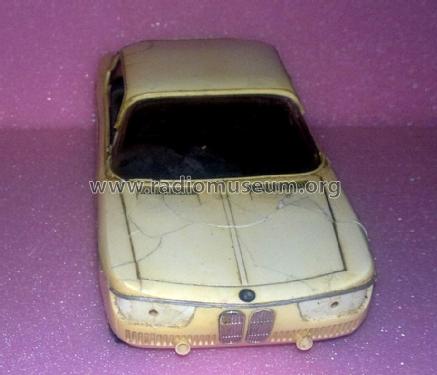

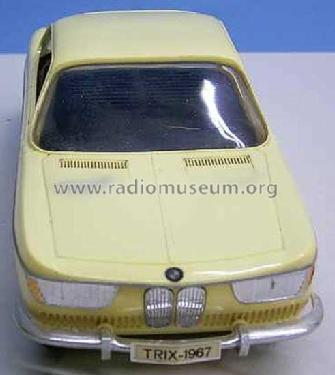

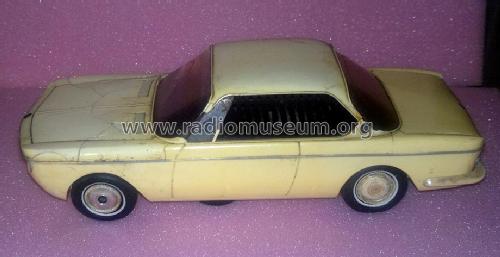

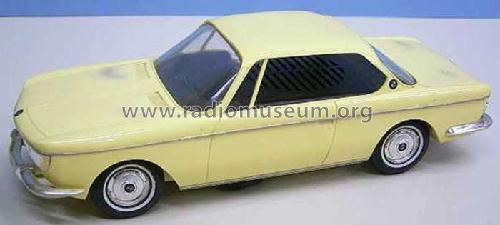

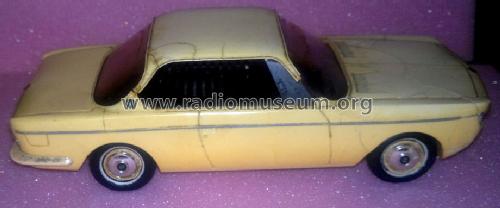

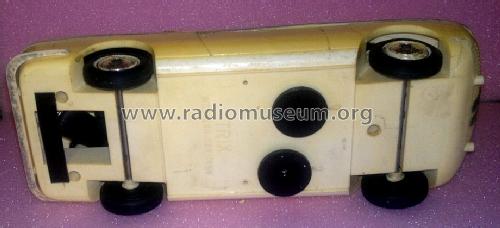

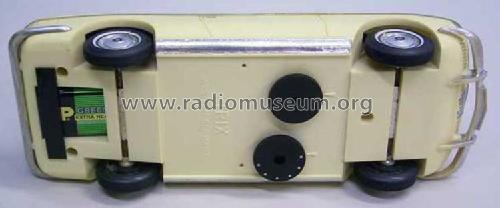

BMW 2000CS-Modell mit Sender- und Lautsprechereinstellung auf der Unterseite, Lautsprecher im Fahrgastraum, Ferritantenne. Variante mit 5 Transistoren (lt. Original Werbe-Verpackungsbox), - Vergleiche mit der Variante 6 Transistoren (lt. Original Werbe-Verpackungsbox). |
