• Country
• United States of America (USA)

• Manufacturer / Brand
• Try-Mo (Powertone) Radio Co., Inc.; NY

• Year
• 1933

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 288264

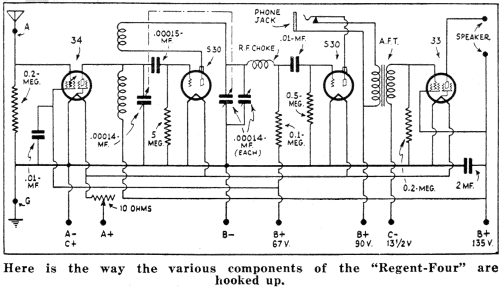

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 34 30 30 33

• Main principle
• TRF with regeneration

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case, TUBES VISIBLE

• from Radiomuseum.org

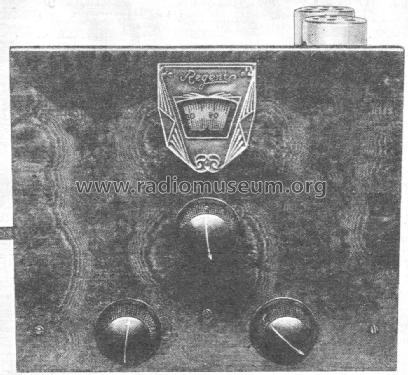

• Model: Regent-Four - Try-Mo Powertone Radio Co.,

• Shape
• Chassis only or for «building in»

• Notes

• The Try-Mo Regent-Four is a shortwave receiver.

• Mentioned in

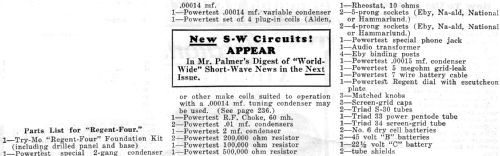

• Short Wave Craft August 1933 page 217 and 234

• Author
• Model page created by Wayne Childress. See "Data change" for further contributors.

• Other Models

• Here you find 14 models, 14 with images and 4 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Try-Mo (Powertone) Radio Co., Inc.; NY
